Feature:

Switches:

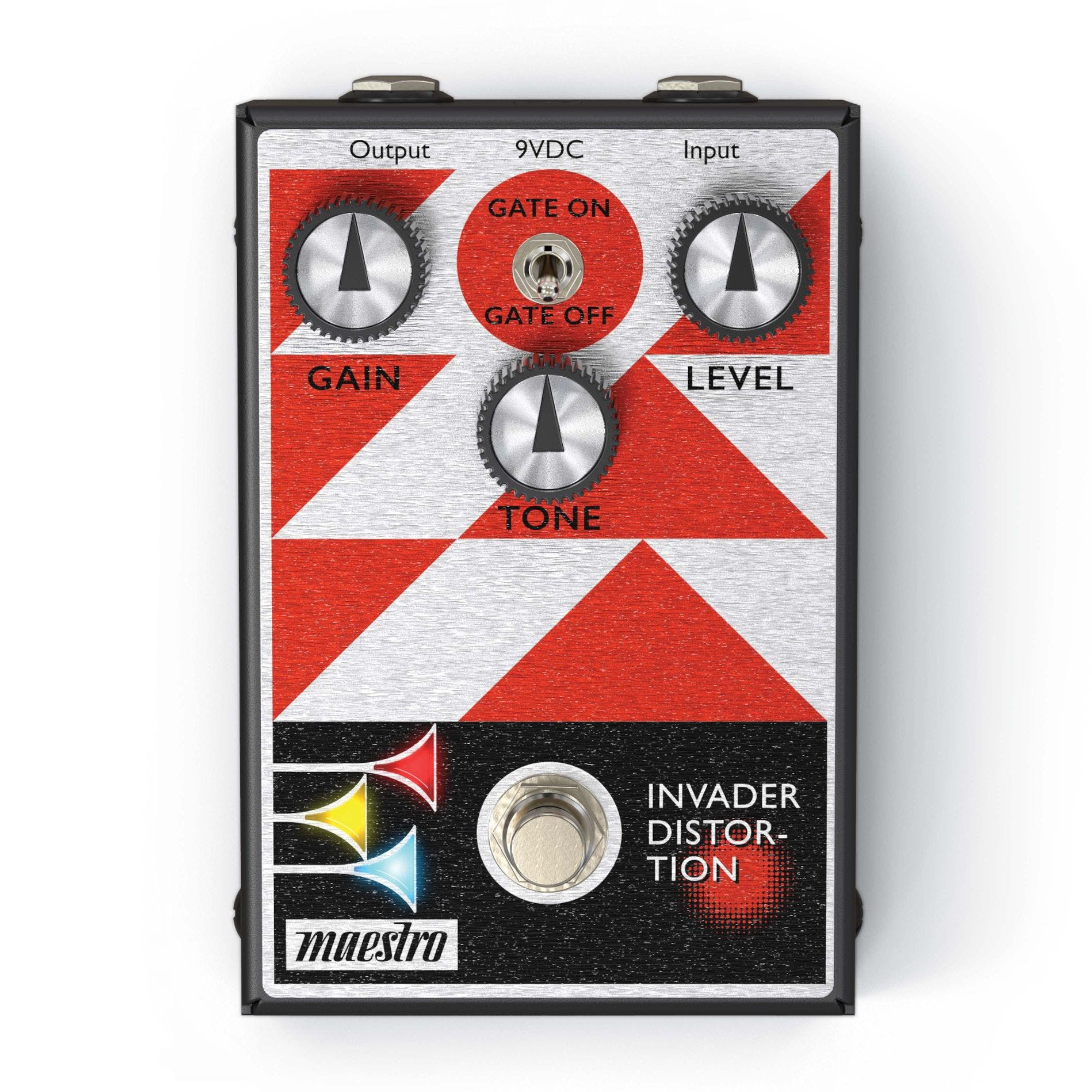

True Bypass footswitch, Gate On/Gate Off toggle switch

Led Indicators

Red, yellow, and blue bugles in the Maestro logo illuminate when the pedal is active

Signal Processing

All-Analog

Power Requirements

9V battery or regulated 9VDC power supply (5.5 X 2.1 mm plug, wired center-negative)

Current Draw

56.7 mA

Power On Switch

Incorporated into the input jack. Unplug the input when not in use to prevent battery drain. Remove the battery when the pedal is going to be stored for long periods to prevent leakage and damage.

Input Impedance

100 kOhms

Output Impedance

100 Ohms

Switching Type

True Bypass

Dimensions

5.04" x 3.45" x 2.5" (128.0 mm x 87.6 mm x 63.5 mm)

Weight

Net: 1.24 lb. (562.5 gm.) Gross: 1.62 lb. (734.8 gm.)
