Marshall DSL20CR Guitar Combo Tube Amplifier w/ Reverb
Couldn't load pickup availability

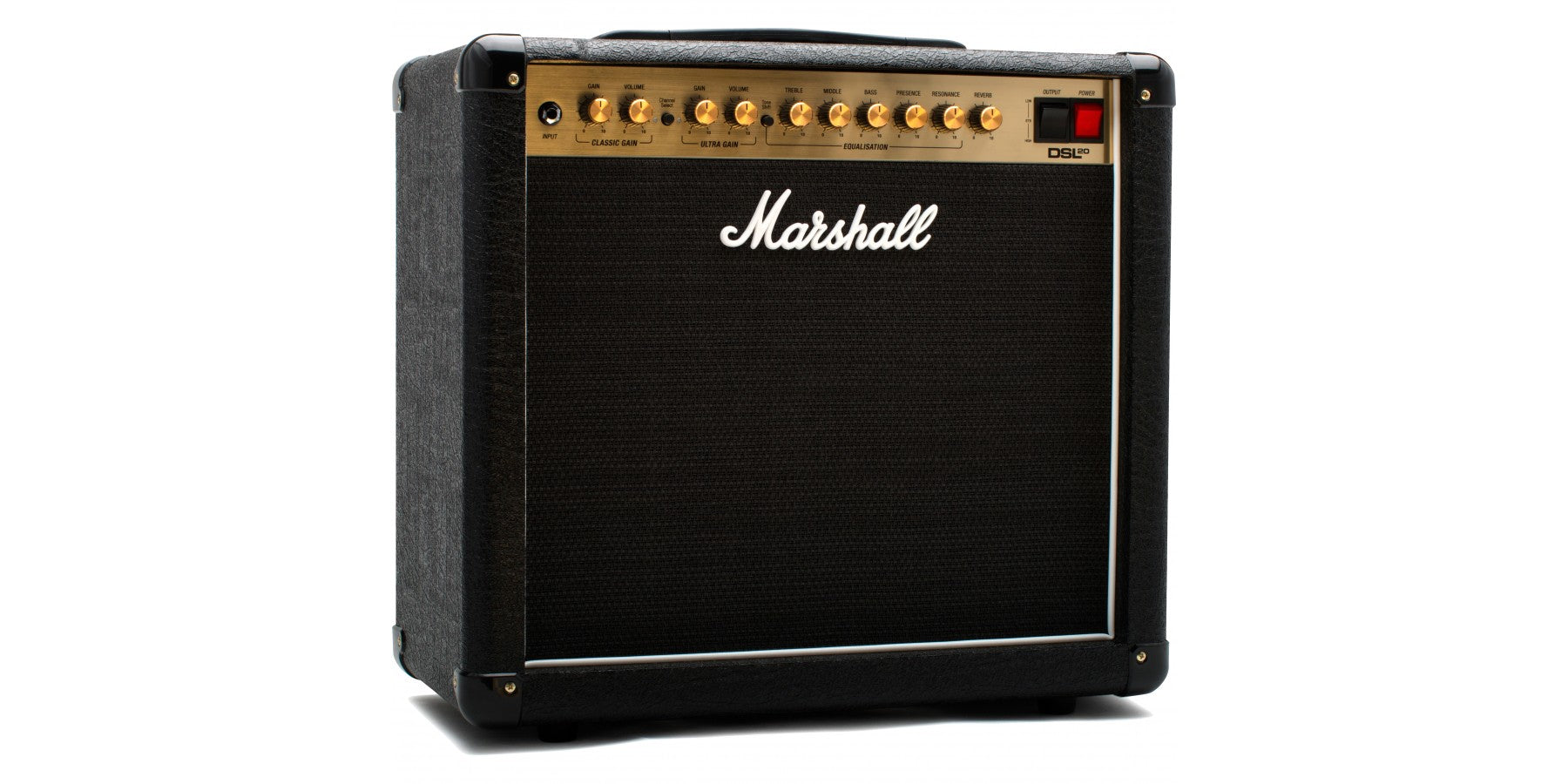

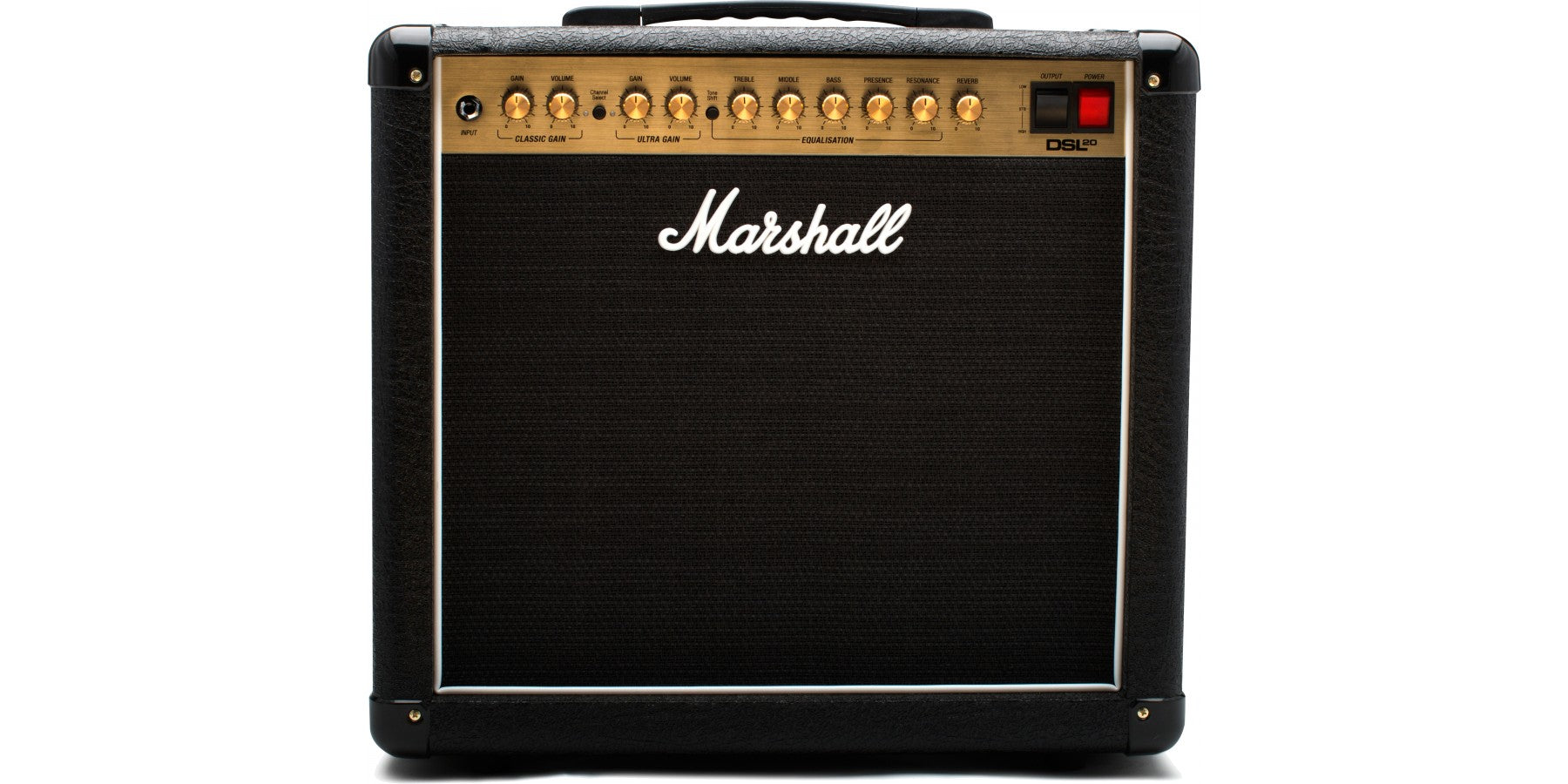

Marshall DSL20C Combo tube amplifier with reverb
The DSL20 combo has a 12” Celestion Seventy-80 speaker for those who require extraordinary tone and versatility. The sound has been perfectly crafted to suit those with eclectic tastes, looking for tonal experimentation.
Features
- Using the two footswitchable gain channels, reverb, FX loop and tone shift controls you can adapt the sound to suit your style.
- Power can be reduced from 20w to 10w without affecting the quality, so you can play wherever you are with confidence.
- The DSL20 combo has three speaker outlets allowing for a combination of two speakers, the ability to record and a standby function for silent recording meaning it can be taken from the bedroom, to the studio and onto a gig.
- You can have more bite and punch to your tone with the presence function and the resonance will give your sound depth.
TECHNICAL SPECIFICATION
GENERAL
Model
DSL20CR
Range
DSL
Technology
Valve
Channels
2 (Split) "Ultra gain" and "classic gain"
ELECTRONICS
Output wattage
20W (with power reduction option, 10W)
Outputs
Speaker outputs: 3 x 1/4" jack sockets (16Ω load / 8Ω load), 1 x 3.5mm jack emulated line out
Inputs
1 x 1/4" instrument jack, 1 x 3.5mm jack Aux in, footswitch
Controls
Classic gain channel (gain, volume), channel select, ultra gain channel (gain volume), tone shift button, treble, middle, bass, presence, resonance, reverb, low power option (on rear)
Effects
Digital reverb
Effects loop
Yes, series, send/return
SPEAKERS
Speaker configuration
1x12"
Speaker model
Celestion Seventy 80 speaker (16Ω, 80w)
Unit impedance
16Ω
VALVES
Preamp valves
3 x ECC83
Power amp valves
2 x EL34
ACCESSORIES
Footswitch
PEDL-90012 included
Cable
Detachable power cable included
Dust cover
M-COVR-00118 (sold separately)
DIMENSIONS (INCLUDING FEET AND HANDLE)
Weight
16.3 kg / 36 lbs
Width
500 mm / 19.7"
Height
420 mm / 16.5"
Depth
250 mm / 9.8"
