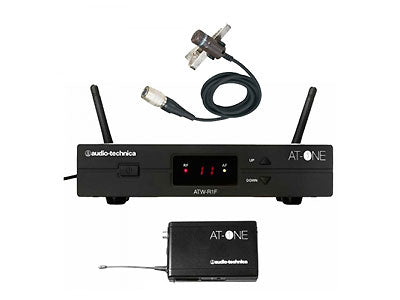

WIRELESS MIC.AUDIO TECHNICA ATW1127/AT829cW VHF,BELT PACK
Couldn't load pickup availability
- Designed for quick and easy use
- Perfect balance between price and performance, the AT-One is ideal for those looking for reliable results at low prices
- The frequency plan of AT-One is divided into two groups with 4 channels available in each group, one in the range of authorized European frequencies and the other in the duplex Gap
- Users can choose up to 4 channels in a group
- The ATW-11 system is equipped with a discreet and robust pocket transmitter
- RF transmission power 10mW
- The bodypack transmitter has a 4-pin HRS connector, which is able to connect to all Audio-Technica wireless microphones
- Up to 10 hours' battery life with 2 x 1.5V AA batteries
- RF Indicator light
- Robust construction from high quality components
- Delivered in a transport case with a rack mount kit and detachable antennas
AT-One, Audio-Technica’s entry level UHF wireless system. With a 2 x 4 channel frequency plan for enhanced flexibility, sturdy but stylish build quality and a simple user interface, AT-One is ready to become your perfect wireless companion.
AT-One is designed with simplicity and ease-of-use in mind. Equipped with a practical carrying case, rack-mount kit and detachable antennae, AT-One is the perfect balance of price and performance, ideal for those looking for accurate, reliable performance at an entry level price. The AT-One’s frequency plan is divided into two groups with 4 available channels in each group split between the Europe wide license free frequency range and the LTE duplex gap. Users can choose up to 4 channels within one group.
Available in three configurations, AT-One can be purchased with a beltpack or handheld transmitter. The ATW-11 comes equipped with a sturdy, discreetly designed beltpack, providing 10mW RF output power, damping switch and a battery life of 10 hours.
| Overall System | |
|---|---|
| Operating Frequencies | F-Band: 482-512Mhz |
| Number Of Channels | 2 x 4 frequencies |
| Frequency Stability | +/- 0.005%, Phase lock loop frequency control |
| Modulation Mode | FM |
| Frequency Response | 60 Hz - 16 kHz |
| Operating Range | 60m, typical |
| Receiver | |
|---|---|
| Receiving System | Antenna switching diversity |
| Image Rejection | 55dB minimum |
| Dynamic Range | HH: 108 dB, BP 103 dB (@ max deviation) |
| Sensitivity | 10dBµV (S/N 60dB @ 20 kHz deviation) |
| Total Harmonic Distortion | <1% - 20 kHz deviation @ 1 kHz |
| Audio Output Unbalanced | -2dBV |
| Audio Output Balanced | 4dBV |
| Output Connectors (Microphone) | Balanced: XLRM-type |
| Output Connectors (Instrument) | Unbalanced: 6.3 mm mono jack |
| Maximum Output Level | Mic / Line (0 / -20dB) |
| Antenna Input | BNC type, 50 - BIAS voltage 12V DC 100mA each |
| Dimensions | 200 mm x 42 mm x 122 mm (W x H x D) |
| Weight | 418 g without accessories |
| Accessories Included | AC Adapter, Antennas, Rack mount adapter, protective carrying case |
| Belt Pack | |
|---|---|
| RF Power Output | 10 mW |
| Spurious Emissions | Following national regulations |
| Input Connections | Pin 1: GND Pin 2: INST Pin 3: Mic Pin 4: DC Bias +10V |
| Battery Type | Two 1.5V AA alkaline (not included) |
| Battery Life | 10 hours - depending on battery type and use pattern |
| Dimensions | 66 mm x 98 mm x 22 mm (W x H x D) |
AT829cW lavalier
The AT829cW is a wireless clip-on/lavalier condenser microphone with a cardioid polar pattern. It is designed for professional business presentations, public speaking and theater performances. The microphone is intended to be worn on the clothing for excellent yet unobtrusive sound pickup. The wide-range capability of the microphone ensures clean, accurate reproduction with high intelligibility for speakers, presenters and other performers.
- Ideal for professional business presentations, public speaking, theater performances
- Clip-on lavalier mic provides crisp, full-sounding voice pickup
- Excellent gain before feedback and suppression of background noise
- Rugged design and construction for reliable performance
- Terminated for use with all Audio-Technica UniPak® wireless systems
- The microphone's cardioid polar pattern provides a 120° angle of acceptance
- The microphone includes a 1.4 m (55") permanently attached miniature cable
- Its free end terminates in a locking 4-pin connector for use with Audio-Technica UniPak® body-pack transmitters
- The microphone comes equipped with a clothing clip and a windscreen
SPECIFICATIONS
| Element | Condenser |
| Polar Pattern | Cardioid |
| Weight | 2.4 g (0.1 oz) |
| Dimensions | 24mm long, 10.5mm diameter |
| Output Connector | HRS 4-pin connector for A-T UniPak® body-pack wireless transmitters |
| Cable | 55" (1.4 m) Cable permanently attached to mic |
| Accessories Included | AT8131 foam windscreen; AT8434 clothing clip |
WIRELESS MIC.AUDIO TECHNICA ATW1127/AT829cW VHF,BELT PACK
