By Simfoni Musik

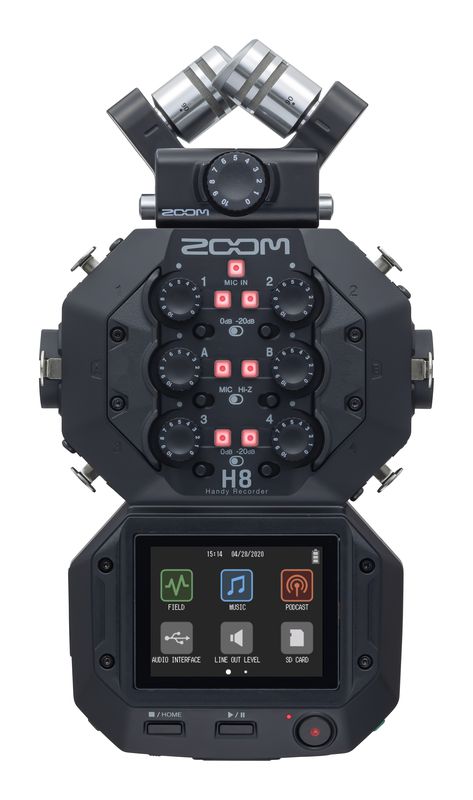

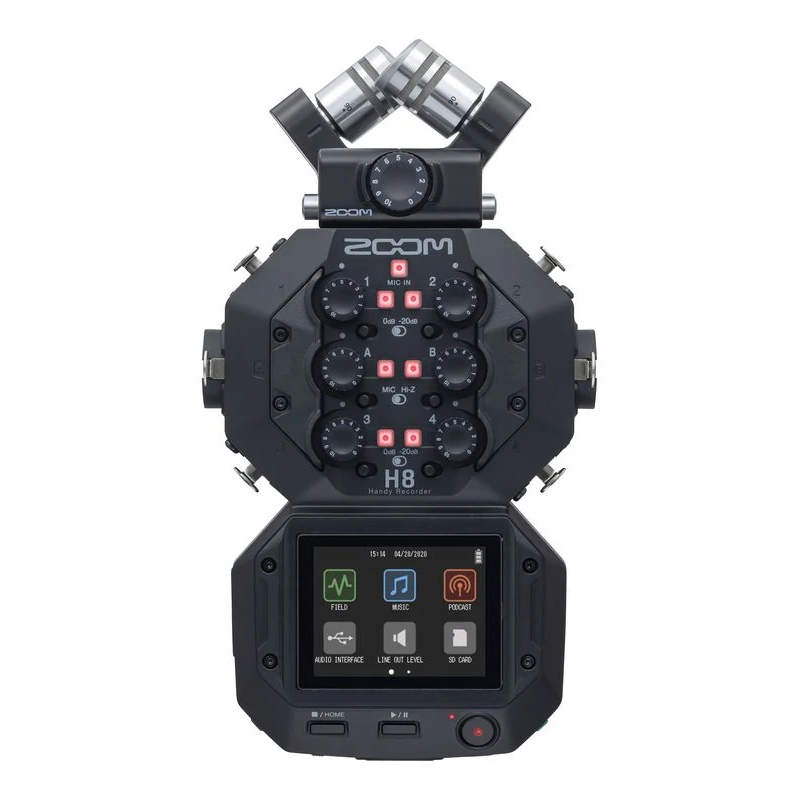

ZOOM H8
Regular price
Rp 6.208.000,00
Regular price
Rp 6.208.000,00
Sale price
Rp 6.208.000,00
Unit price
per
Tax included.
Couldn't load pickup availability
Availability:
Out of stock
SKU:
Tags:
Collections:
Regular price
Rp 6.208.000,00
Regular price
Rp 6.208.000,00
Sale price
Rp 6.208.000,00
H8 FEATURES
- Customized applications for field recording, music and podcasting
- 3 distinct interfaces for field recording, music and podcasting
- Interchangeable input capsules
- 12-track simultaneous recording
- Four mic inputs and two XLR/TRS combo connectors
- Gain control knobs and -20dB pads for each input
- Supplied XYH-6 X/Y capsule provides secondary input via a stereo Mic/Line In mini phone jack
- Phantom power for all six XLR mic inputs: 24/ 48V
- Large color LCD touchscreen display
- Records directly to SD, SDHC and SDXC cards up to 512GB
- Up to 24-bit /96kHz audio in BWF-compliant WAV or a variety of MP3 formats
- Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take
- Built-in effects, including low-cut filtering, compression, and limiting
- Multichannel and stereo USB audio interface for PC/Mac/iPad
- Accepts standard AA alkaline or NiMH rechargeable batteries
- Over 10 hours of operation with 4 AA alkaline batteries
SPECS
Specifications
| NUMBER OF INPUT CHANNELS | 8 (XY mic capsule, 1-4, A, B) |
| NUMBER OF OUTPUT CHANNELS | 2 (stereo headphone and stereo line) |
Connectors
| MIC IN | ZOOM mic connector |
| INPUT 1-4 | XLR jacks (2: HOT) |
| INPUT A/B | XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot) |
| USB | USB Micro-B(audio interface, mass storage and Guitar Lab connection functions)Note: Use a USB cable that supports data transfer.Operation using USB bus power is possible. |
| REMOTE | ZOOM BTA-1 or other dedicated wireless adapter |
| LINE OUT | 3.5 mm stereo mini |
| PHONE OUT | 3.5 mm stereo mini |
| PHANTOM POWER | 24 V/ 48 V (independent ON/OFF for INPUTS 1 4, A and B) |
Recorder
| RECORDING MEDIA | Cards that support SD/SDHC/SDXC specifications |
| FORMATS | WAV: 44.1/48/96 kHz, 16/24-bit, mono/stereoMP3: 128, 192, 320 kbps |
| MAXIMUM SIMULTANEOUS RECORDINGTRACKS | 12 (MIC IN, backup recording, 1-4, A, B, and LR) |
Audio interface
| MULTITRACK MODE | 44.1/48/96 kHz, 16/24-bit, 12-in/2-out |
| STEREO MIX MODE | 44.1/48 kHz, 24-bit, 2-in/2-out |
| TUNER | Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD |
| BUILT-IN SPEAKER | 400 mW 8 mono speaker |
| DISPLAY | 2.4" (320 240) full-color touchscreen LCD |
| POWER | 4 AA batteries (alkaline, NiMH or lithium)AC adapter (ZOOM AD-17): DC 5 V/1AUSB bus power |
| Using XY mic, 44.1 kHz/24-bit (stereo 1): about 10:00 | |
| The above values are approximate. | |
| Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions. | |
| EXTERNAL DIMENSIONS H8 | 116.4 mm (W) 163.3 mm (D) 48.6 mm (H) |
| XYH-6 | 78.9 mm (W) 60.2 mm (D) 45.2 mm (H) |
| WEIGHT H8 | 354 g XYH-6: 130 g |
ZOOM H8
