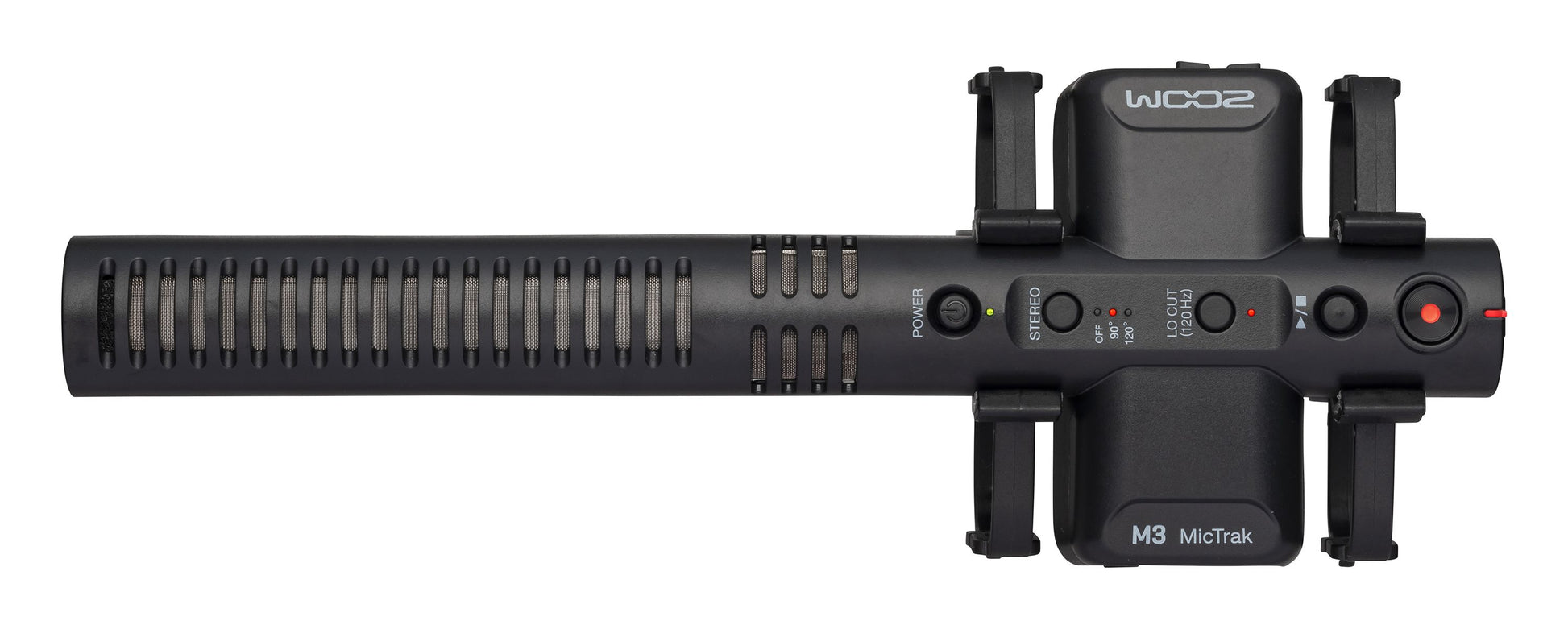

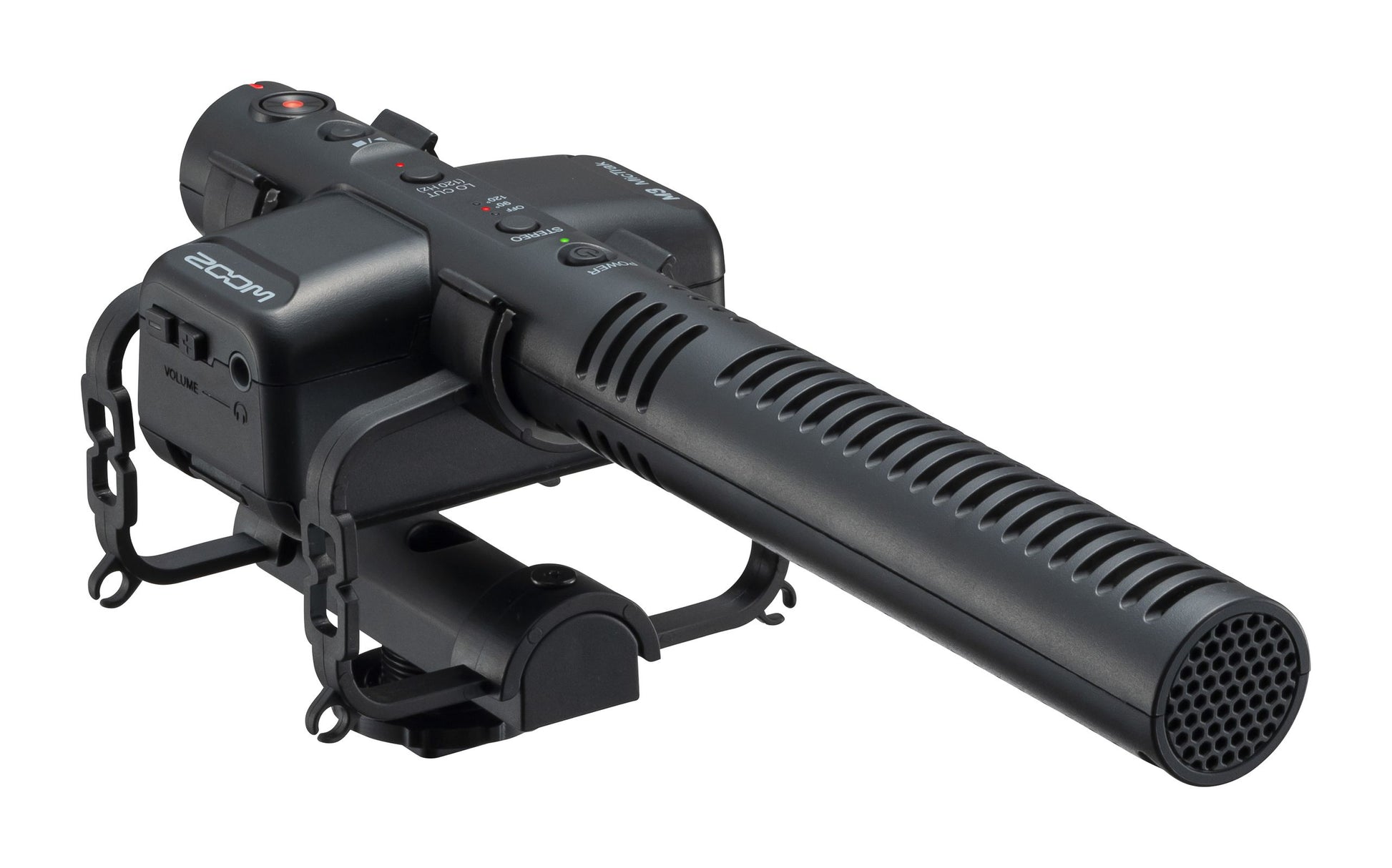

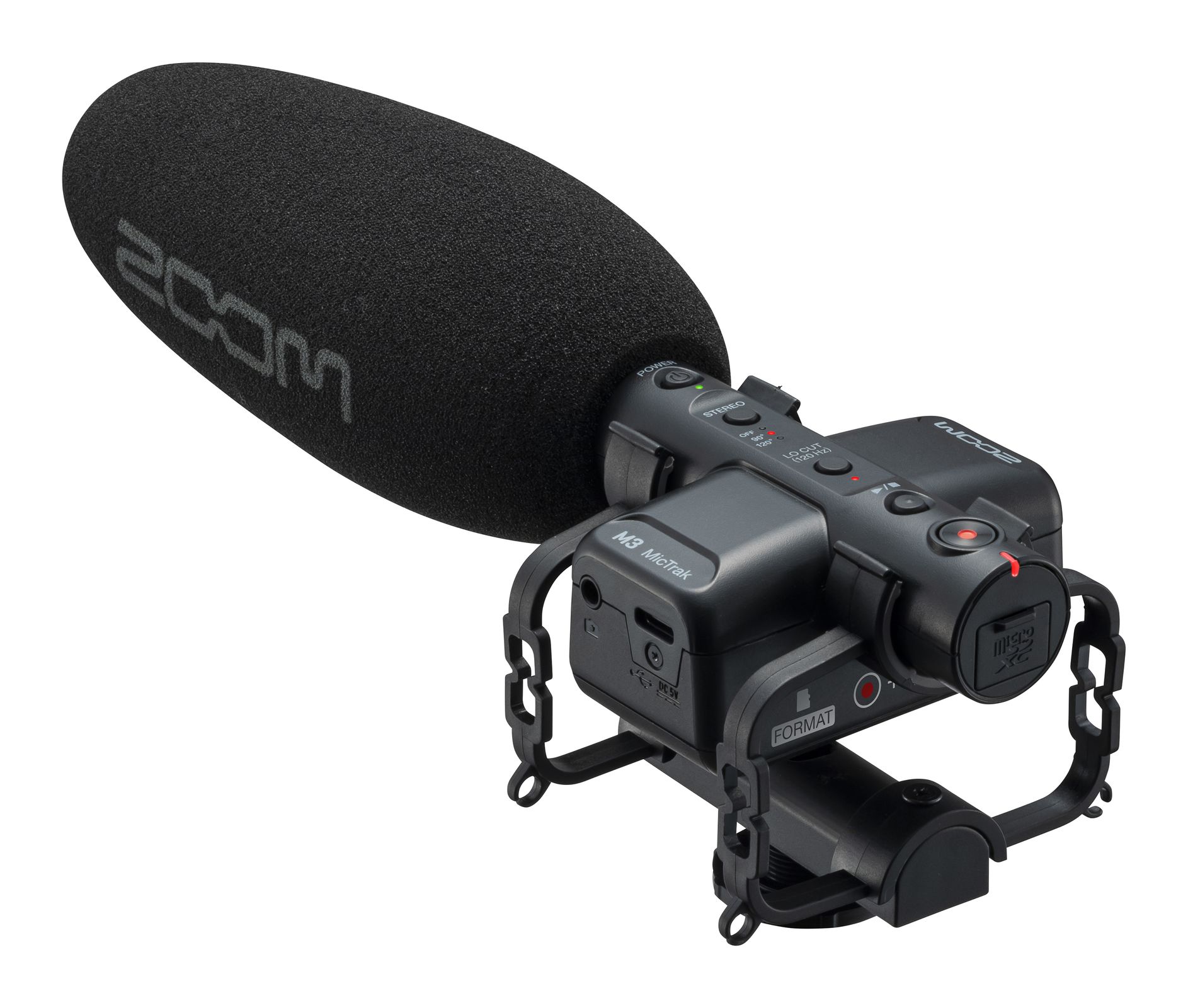

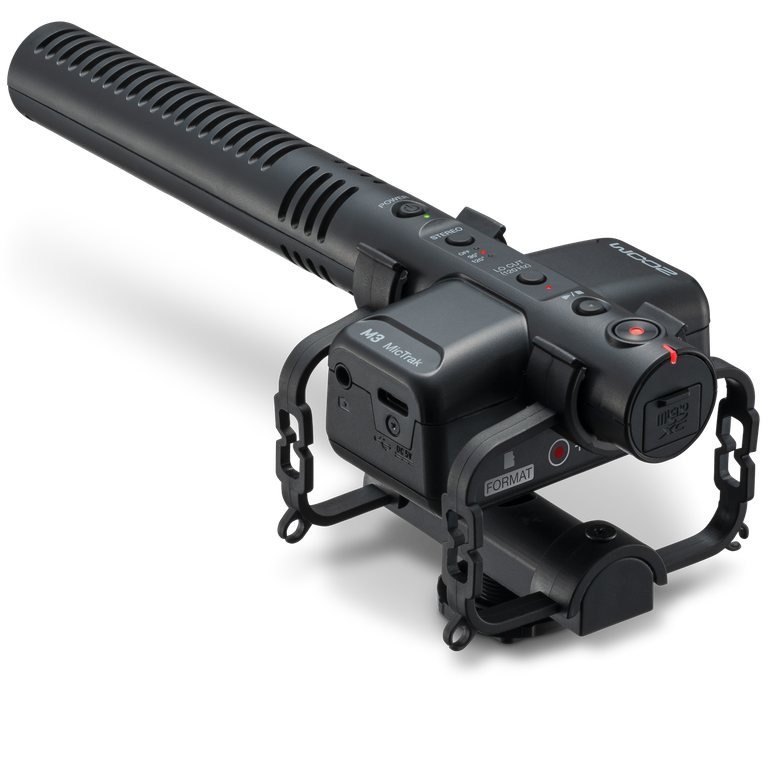

Zoom M3 MicTrak Shotgun Mic With 32-Bit Float Recording

Rp 3.180.000,00
Rp 3.975.000,00 Rp 3.180.000,00
-Rp 795.000,00
Tax included.
Availability: Low stock: 1 left
SKU: ZOM5416500218
Collections:
Rp 3.180.000,00
Rp 3.975.000,00 Rp 3.180.000,00

Features, Tour & Specs

  • Stereo Shotgun Microphone with 90 degree, 120 degree, and MONO
  • Built in 32-bit float recorder
  • Records additional Mid-Side RAW file for post-production stereo adjustment

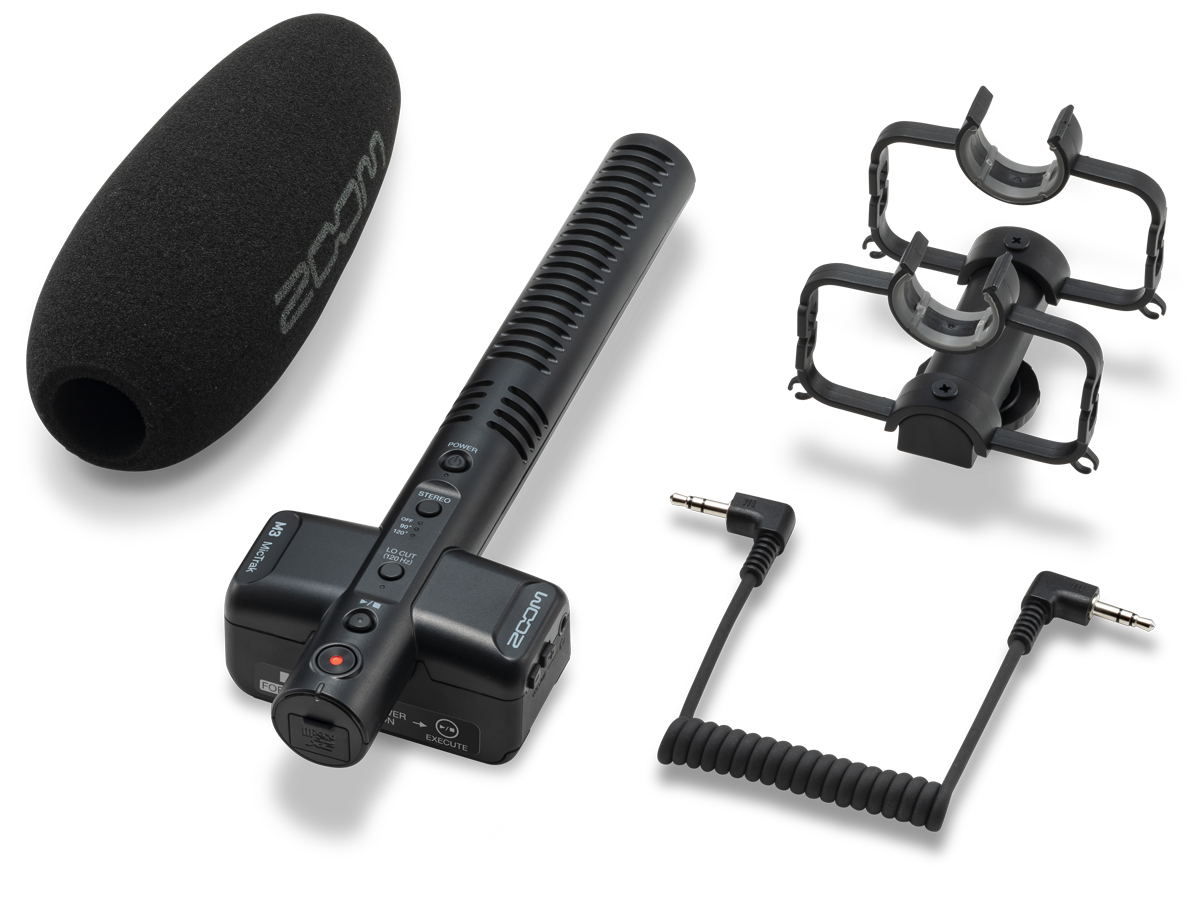

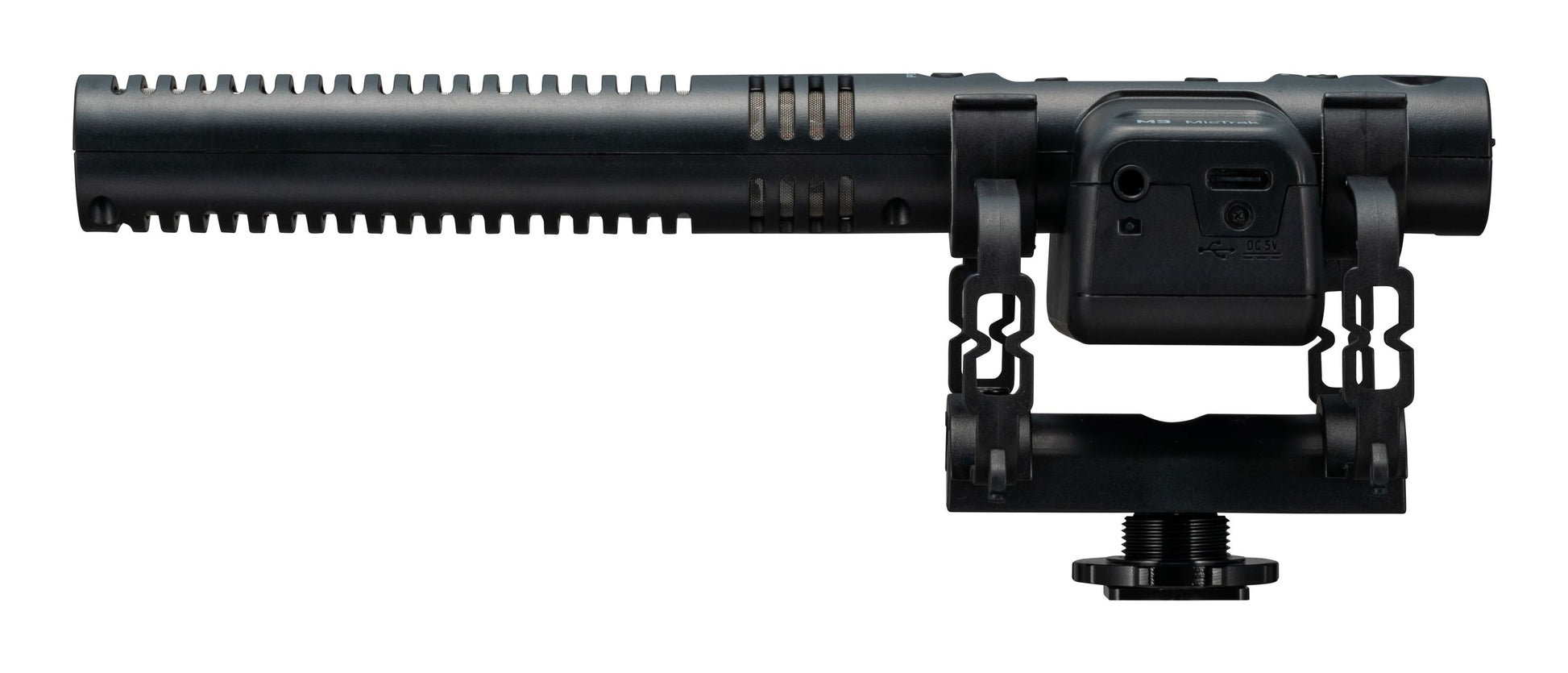

  • Includes custom Zoom Shock Mount
  • Lo cut filter

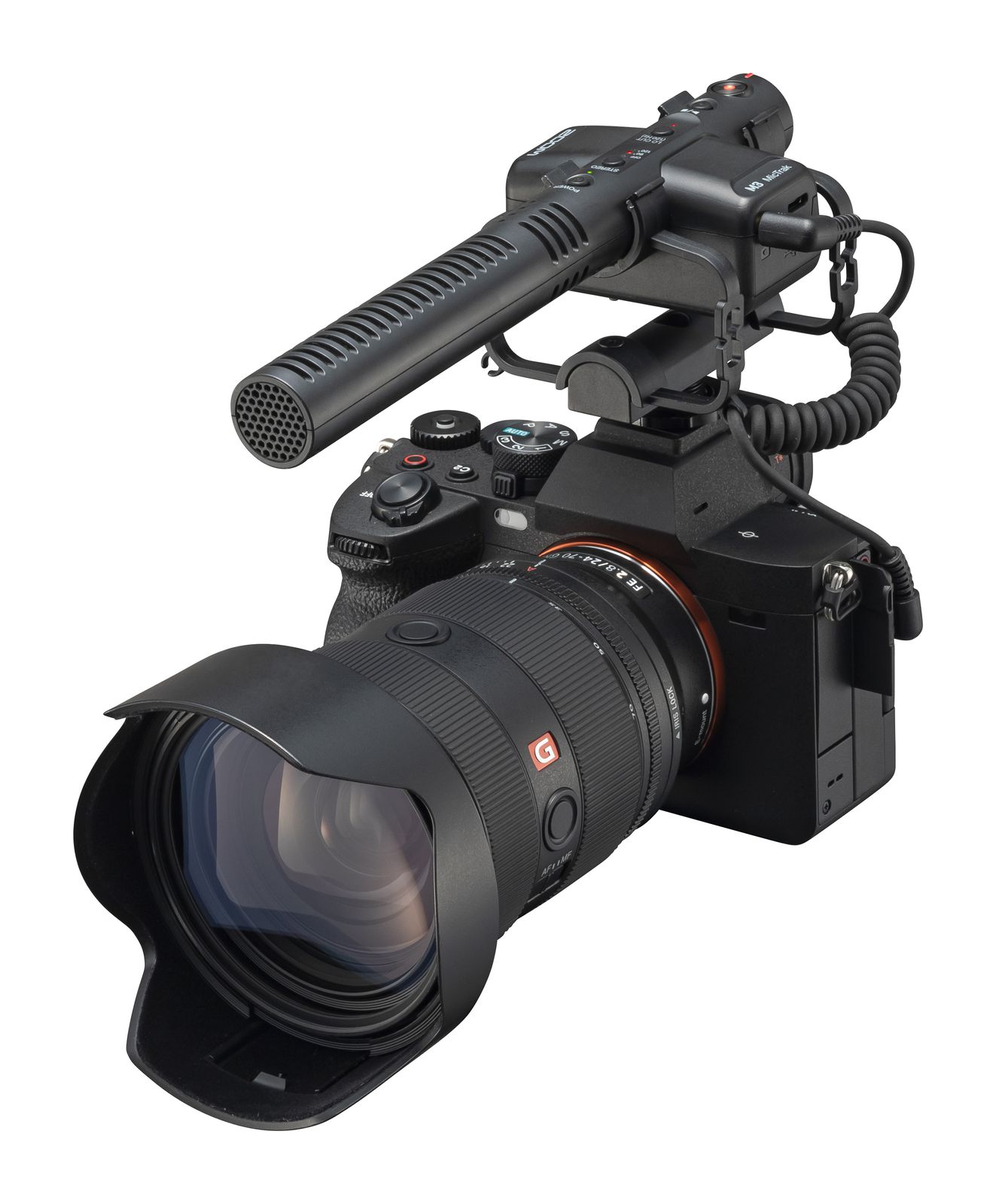

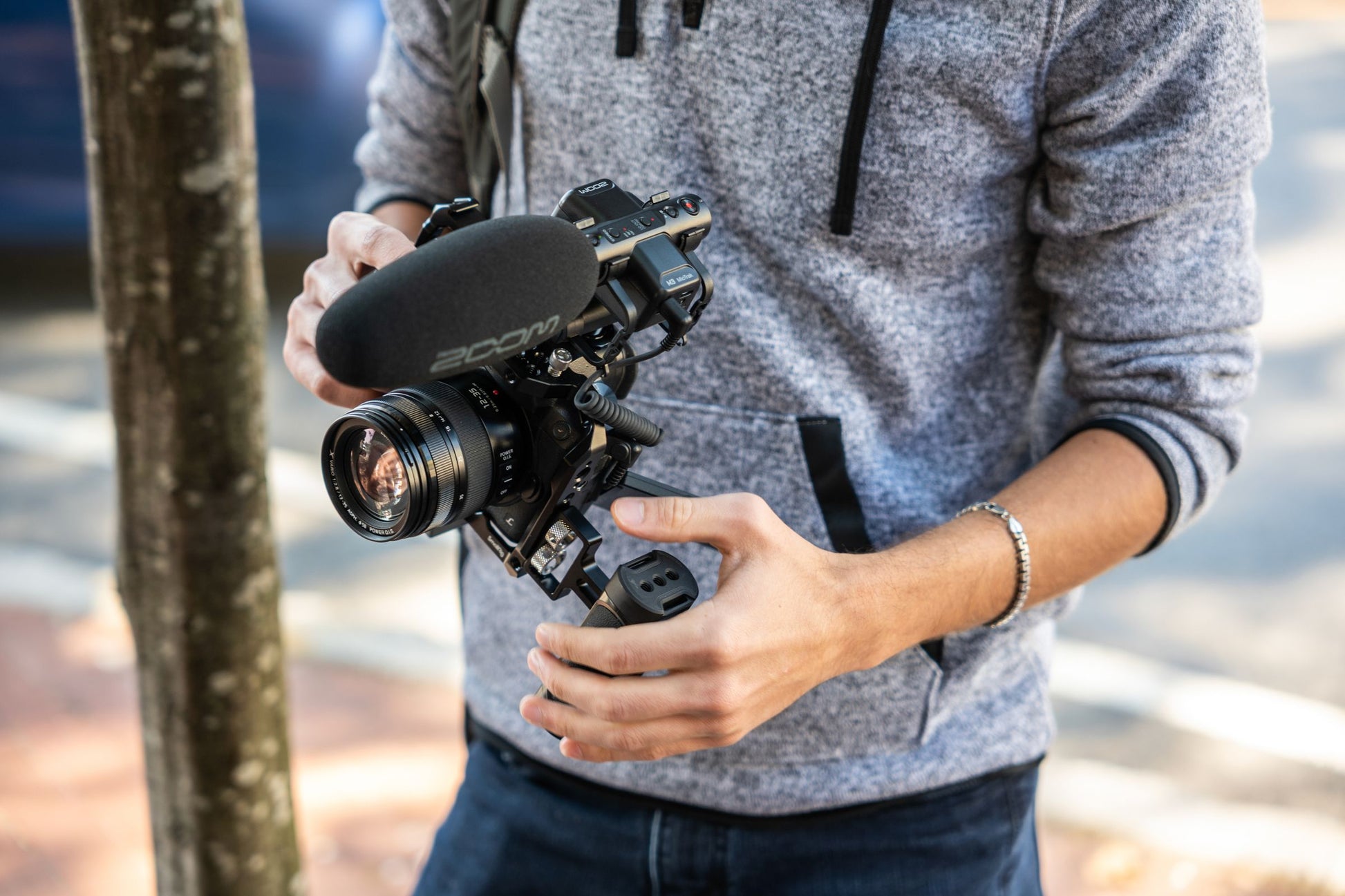

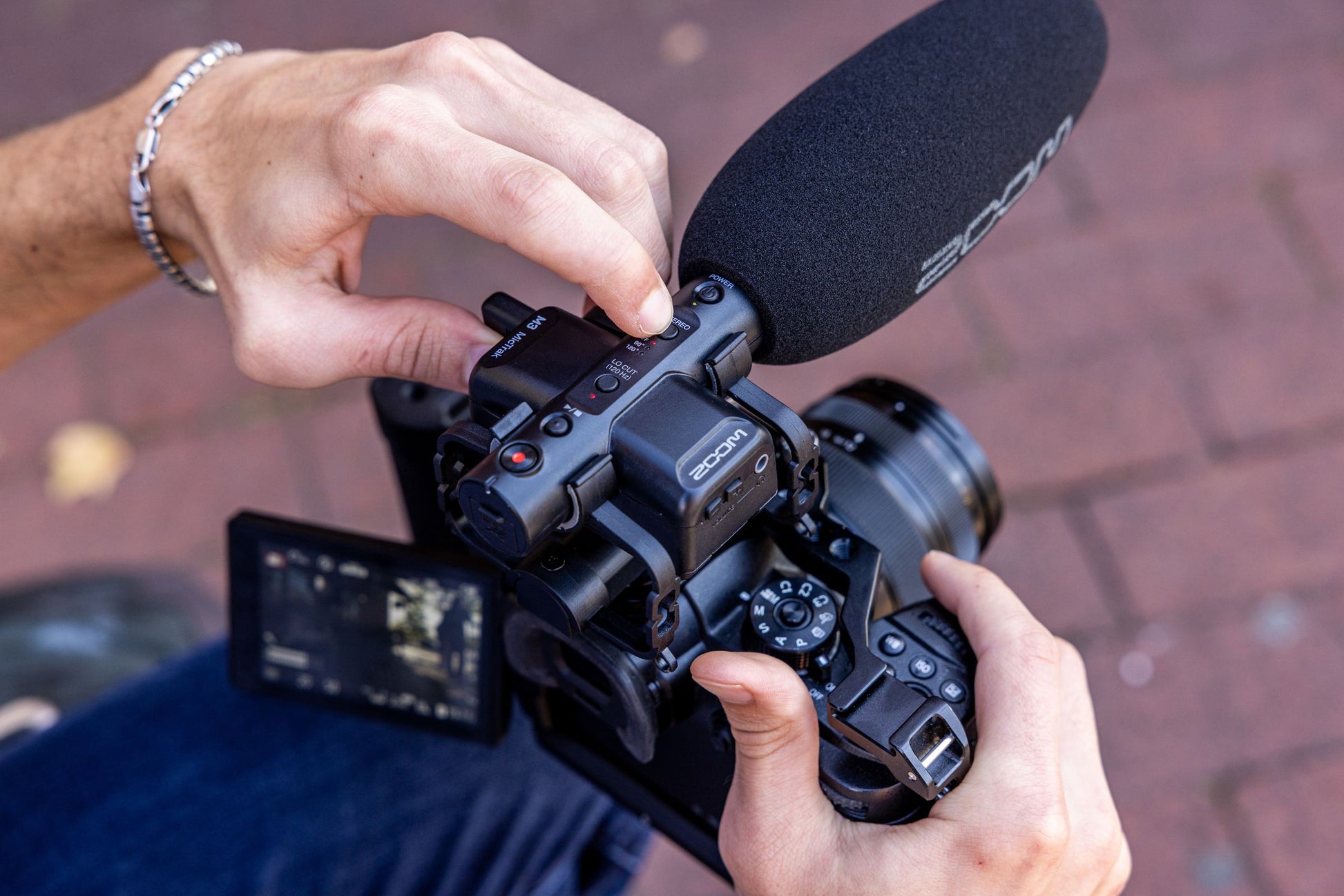

  • Camera mounted or grip mounted
  • 3.5mm stereo line output for camera connection

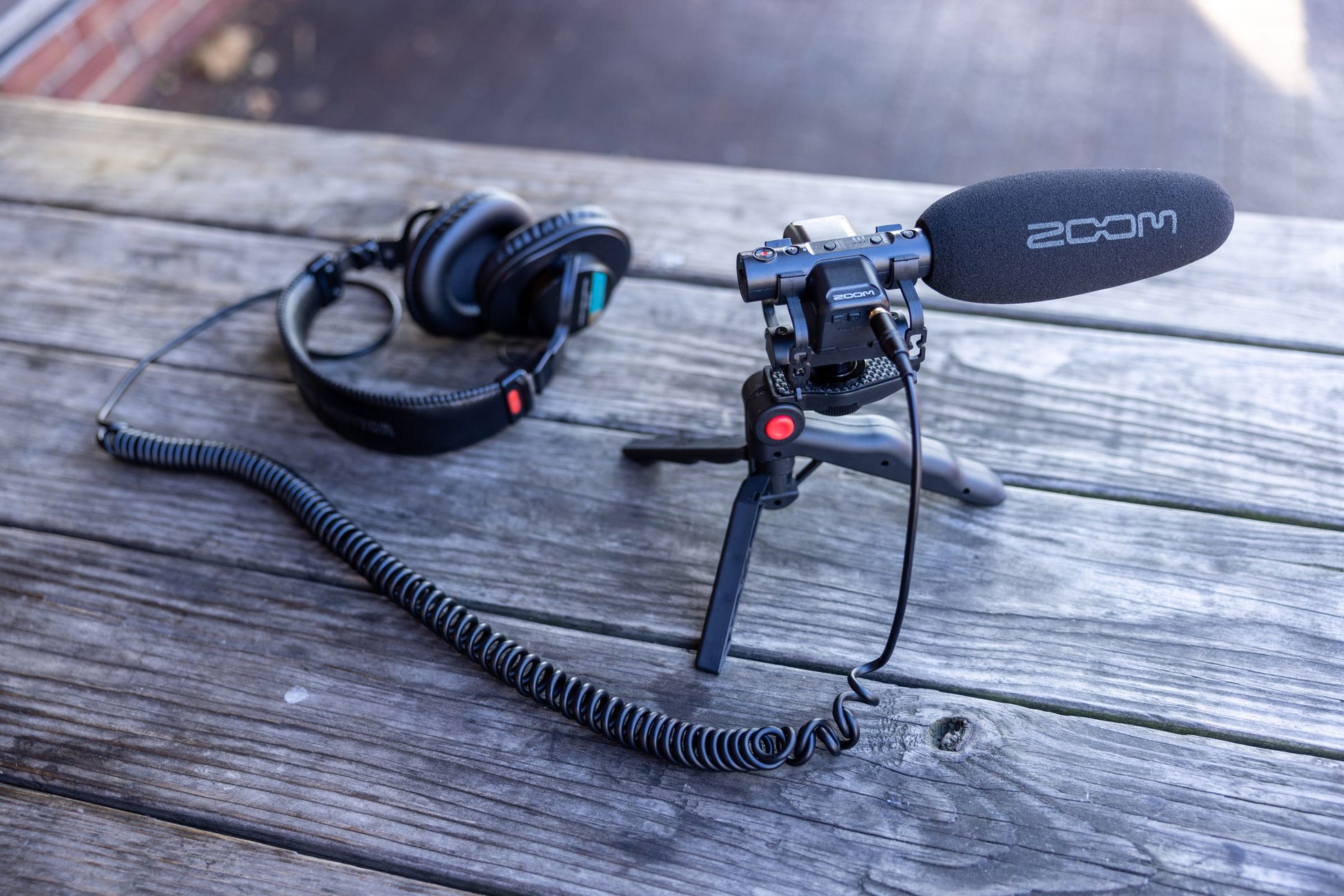

  • 3.5mm headphone output
  • Companion Edit & Play software to adjust stereo width and normalize recorded files
  • Records to SDXC cards

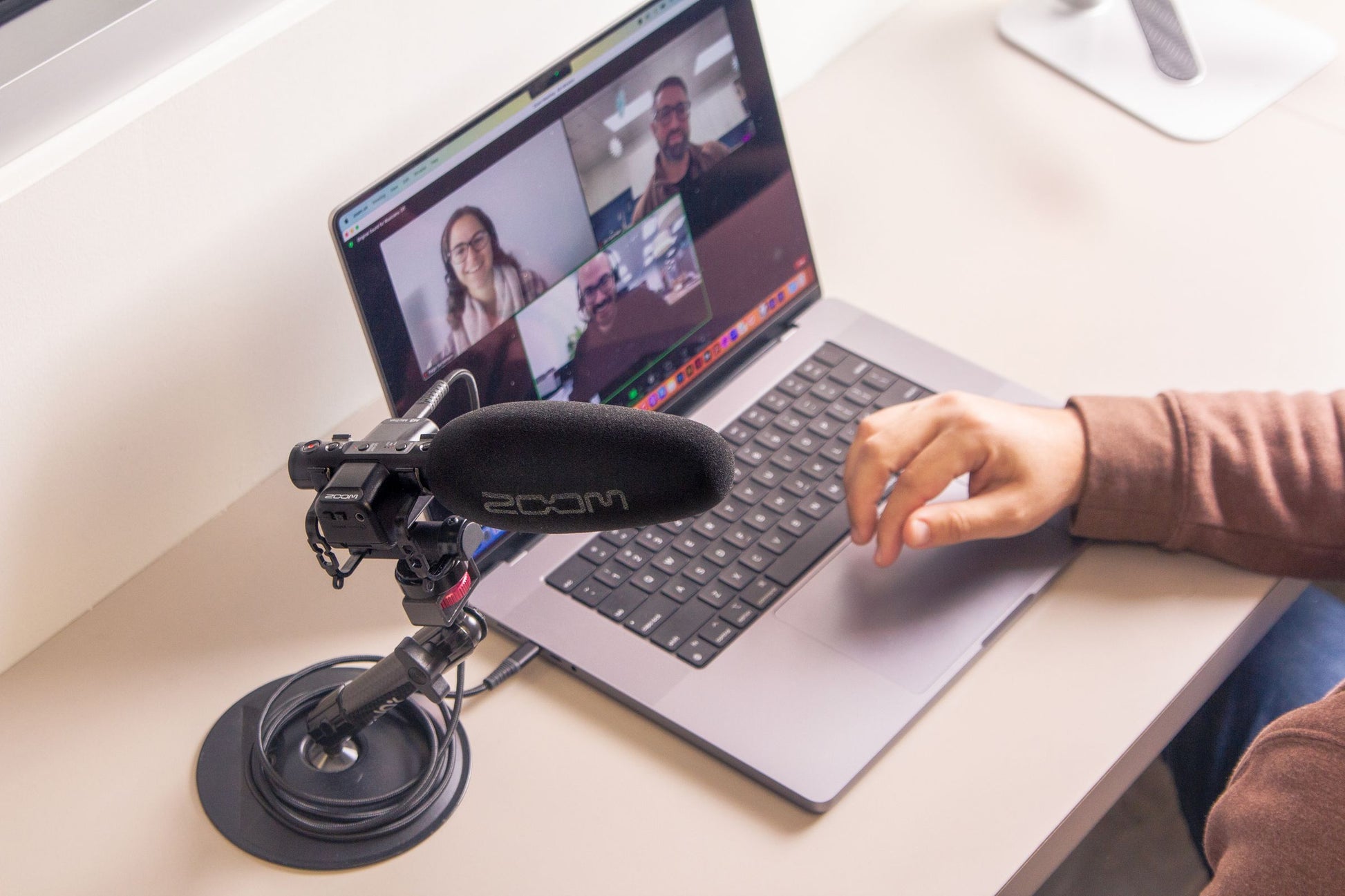

  • USB Microphone compatible with PC and Mac

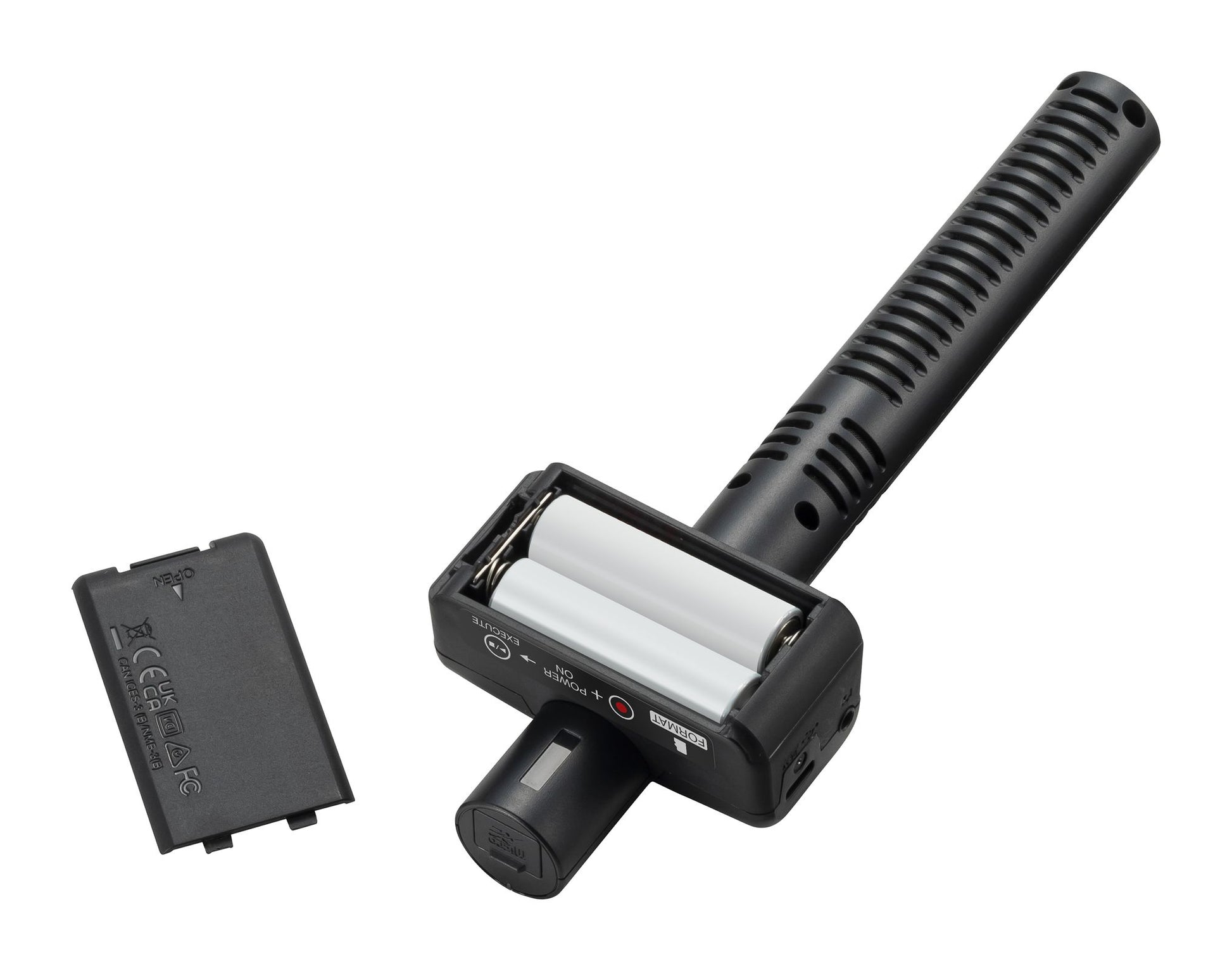

  • Runs on 2 AA batteries* (12 hour battery life)

*Batteries not included

Specs

Inputs

Mid mic (Mono shotgun) Directionality Super cardioid
Input gain Adjustment unnecessary (dual A/D converter circuit used)
Maximum sound pressure input 133 dB SPL
Side mic Directionality Bidirectional
Input gain Adjustment unnecessary (dual A/D converter circuit used)
Maximum sound pressure input 119 dB SPL

Outputs

LINE OUT Connector 3.5 mm stereo mini jack
Maximum output level +1.2 dBu (into 2 kΩ load)
Output impedance 100 Ω
PHONE OUT Connector 3.5 mm stereo mini jack
Maximum output level 20 mW + 20 mW (into 32Ω load)
Output impedance 10 Ω

Recorder

Maximum simultaneous recording tracks 4
Maximum simultaneous playback tracks 2
Recording format WAV
48 kHz, 32-bit float stereo
BWF format supported
Recording media 4–32GB cards compatible with the microSDHC specification
64GB–1TB cards compatible with the microSDXC specification

USB

Connector USB Type-C
• Use a USB cable that supports data transfer.
USB mic USB 2.0 High Speed
48 kHz, 24-bit
2-in/2-out
File transfer USB 2.0 High Speed

Power

2 AA batteries Alkaline, Lithium, or Rechargeable NiMH
AC adapter ZOOM AD-17: DC 5 V/1 A
• USB bus power is supported.

Estimated Continuous Operation Time Using Batteries

Alkaline batteries About 12 hours
NiMH batteries (1900 mAh) About 11 hours
Lithium batteries About 21 hours
Rated current Batteries: 234 mA
USB bus power / DC 5V power supply: 186 mA
Power consumption 1.5 W maximum
Dimensions 71.6 mm (W) × 201.3 mm (D) × 38 mm (H)
Weight (including batteries) 135 g

Note: 0 dBu = 0.775 Vrms
