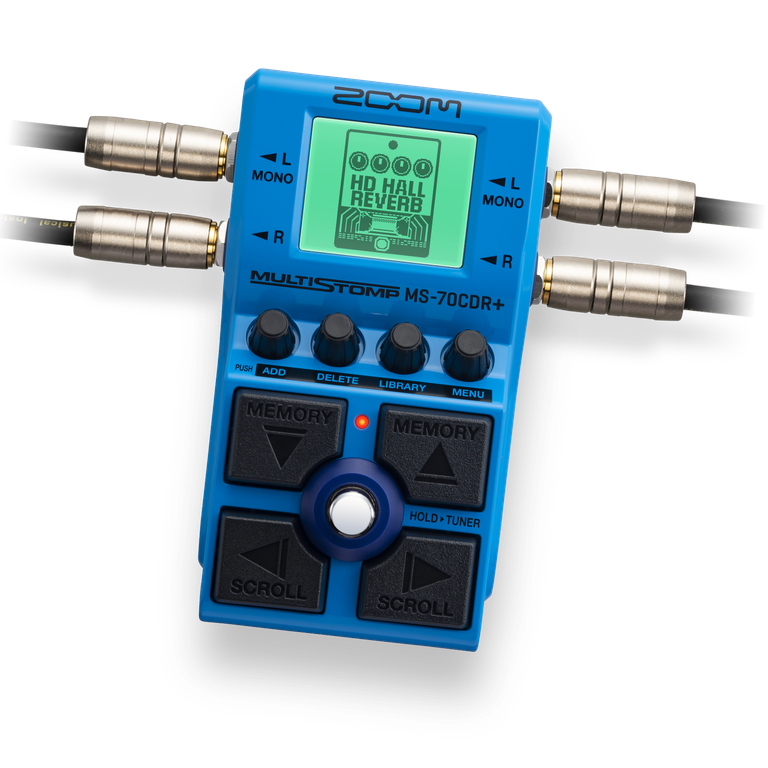

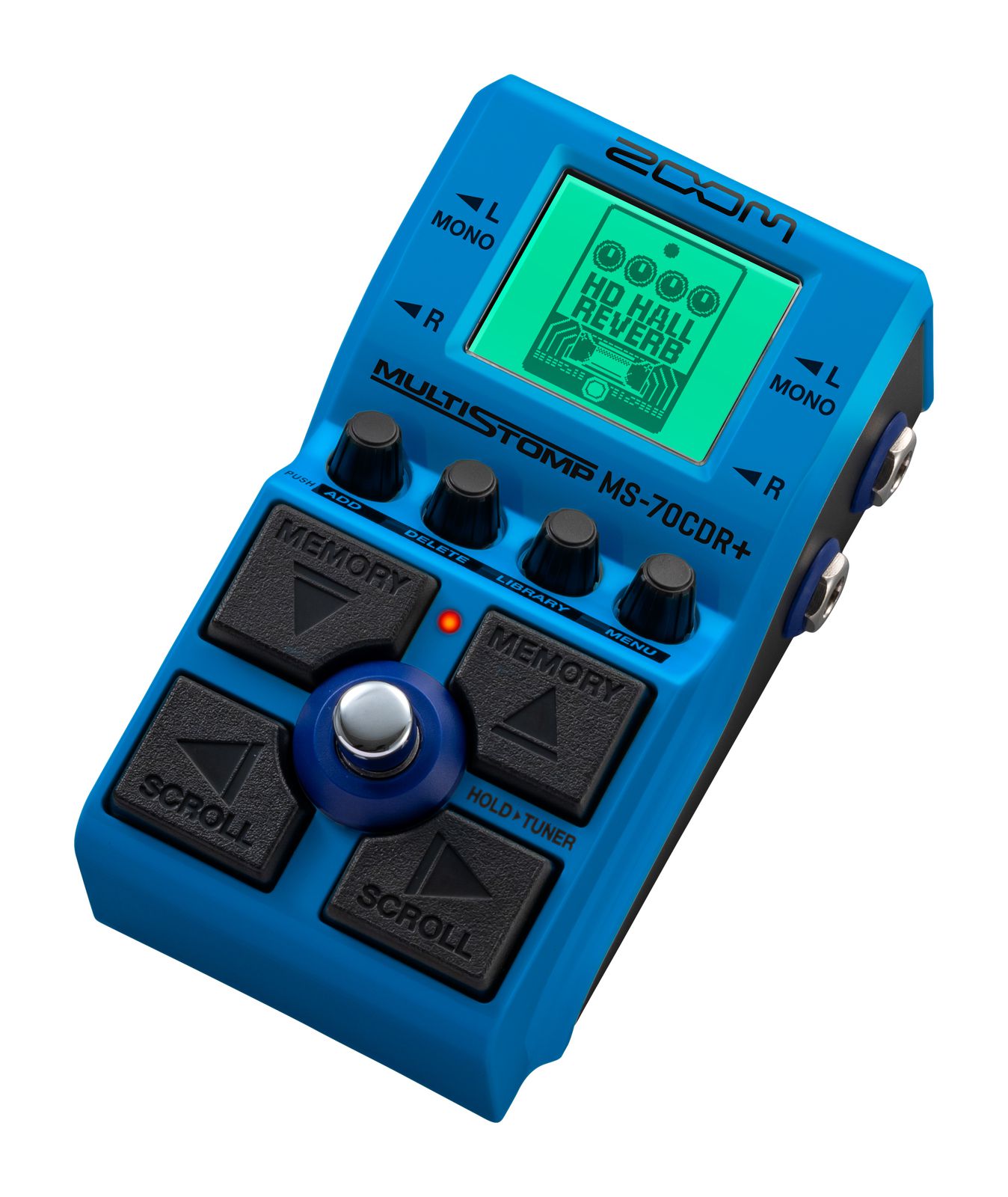

Zoom MS-70CDR+ Modulation Station FX Pedal

The Zoom MS-70CDR+:
Your New Modulation Station

The MS-70CDR+ gives musicians 149 spatial effects ranging from lush choruses to crystal-clear delays to atmospheric reverbs. This single stompbox can shape your tone and provide endless depth and textures.

Chorus

43 different chorus and modulation effects that add depth and motion to your sound including phasing, flanging, tremolo, vibrato, detuning, and pitch shifting.





Delays

Featuring 29 mono and stereo delays with delay times of up to 4 seconds. Choose from a variety of delays including tape echo, ping-pong, and multi-tap.

Reverbs

33 sophisticated studio-quality reverbs. From spring and plate reverbs to giant hall and arena reverbs.

Dynamics / Filters

Round out your sound with 44 dynamic and filter effects, such as EQ’s, Compression, Noise Reduction, and Special Effects.

Define Your Sound

Use a singular effect or up to 6 effects simultaneously to create unique tones. Save your creations in one of the 100 patch slots, or use the 80 preset patches as inspiration to get you started.

Change Patches With MIDI

---

With USB MIDI, you can connect the MS-70CDR+ to other MIDI gear to remotely trigger patch changes.

Color Coded LCD Screen

The LCD backlight changes color to make it easier to distinguish each category of effects while scrolling.

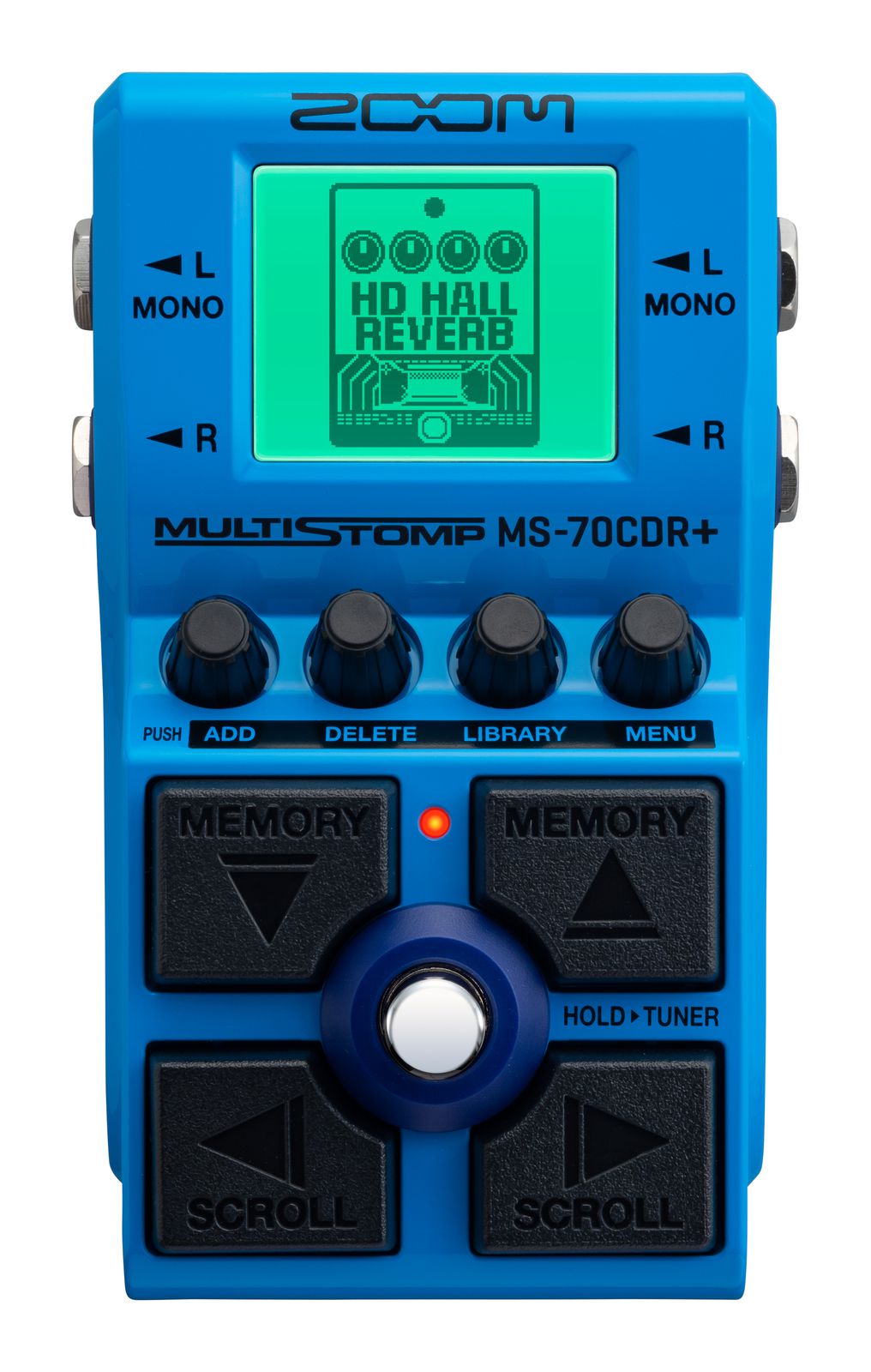

Control Knobs

Adjusting and tweaking parameters for each effect can be done with the four encoder knobs.

Cross Key Switches

The Cross Key switches allow you to instantly switch between effects and patches with a tap of your foot.

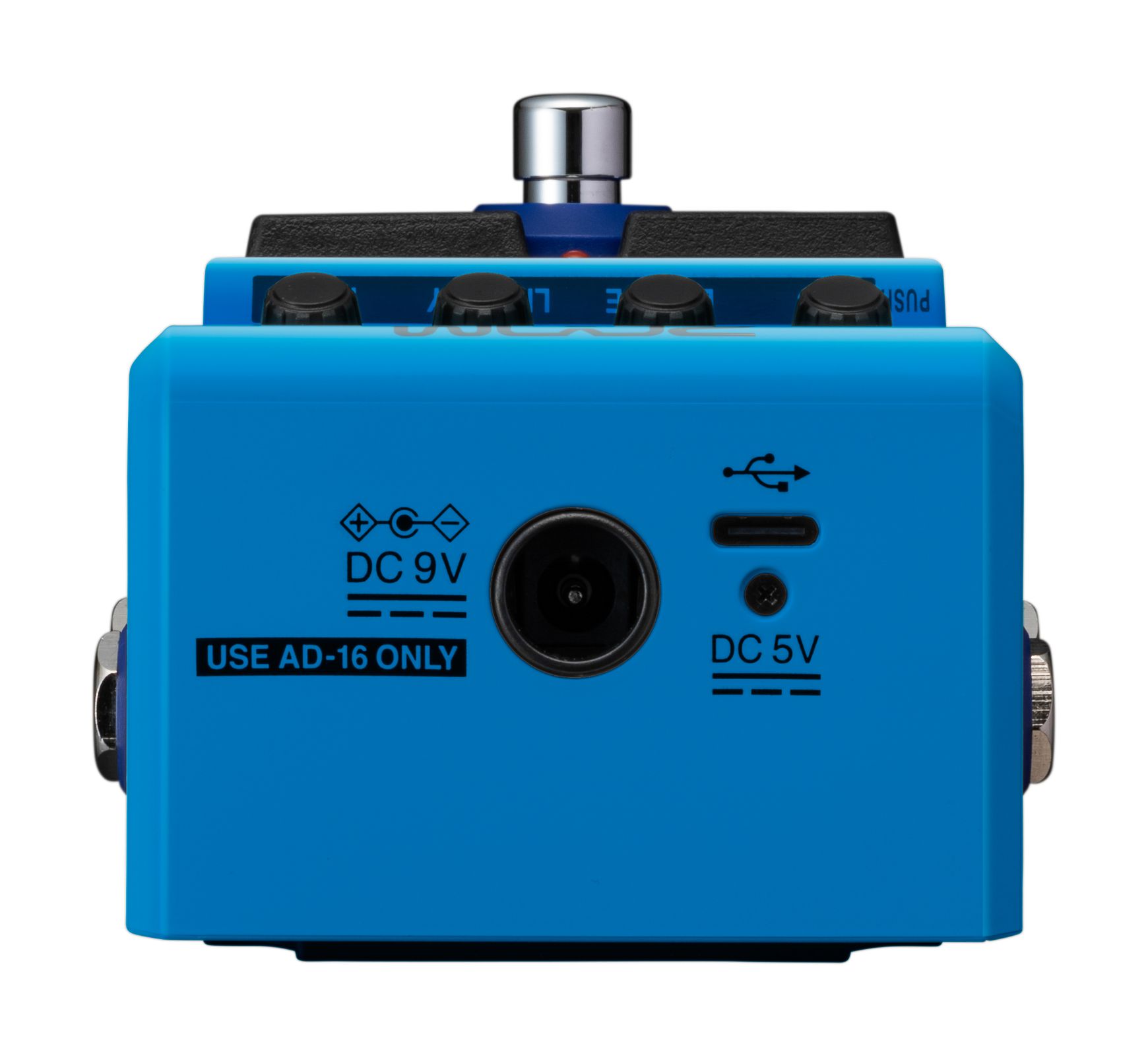

Power Options

The MS-70CDR+ runs on 2 AA batteries, USB power or AC power.





Handy Guitar Lab

With a growing library of patches and effects, guitarists can continue to expand their sound with the Handy Guitar Lab for MS-70CDR+ app for iOS.

MS-70CDR+ Features

• 140+ guitar and bass effects, including modulation, chorus, delay, and reverb
• Use up to 6 effects at the same time
• 100 Patch slots with 80 presets
• Analog circuit with minimal sound deterioration
• Single stompbox design
• Stereo input and output supports effects like stereo chorus and delays
• 4x Cross Key switches (MEMORY / SCROLL) for easy operation by foot
• Improved UI for easier navigation and control
• Color coded LCD backlight for selected effect category
• Runs on 2 AA batteries or AC Adapter

Specs

Maximum number of simultaneous effects		6 effects
User patch memories		100
Sampling frequency		44.1 kHz
A/D conversion		24-bit 128× oversampling
D/A conversion		24-bit 128× oversampling
Signal processing		32-bit
Frequency response		20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kΩ load)
Display		160×128 dot-matrix LCD
Inputs	L/R	Standard mono phone jacks Rated input level: −20 dBu Input impedance (line): 470 kΩ
Outputs	L/R	Standard mono phone jacks Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)
Input S/N		122 dB
Noise floor (residual noise)	L/R	–100 dBu
Power		AC adapter: 9V DC 500mA center negative (ZOOM AD-16) 2 AA batteries (alkaline, lithium or rechargeable NiMH batteries)
Estimated operation times	• These values are "approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions."	Alkaline batteries: about 7 hours (about 5 hours using using batteries) NiMH batteries (1900 mAh): about 6.5 hours (about 5 hours using stereo input) Lithium batteries: about 14 hours (about 10 hours using stereo input)
USB		Port: USB 2.0 Type-C / Supported cable type: Type-C Handy Guitar Lab: USB 1.1 Full Speed • Use a USB cable that supports data transfer. USB bus power is supported.
Dimensions		133 mm (D) × 79 mm (W) × 61 mm (H)
Weight		368 g (excluding batteries) 415 g (including batteries)
Note: 0 dBu = 0.775 V
