  3. Zoom Podtrack P8 Podcast Recorder
By Simfoni Musik

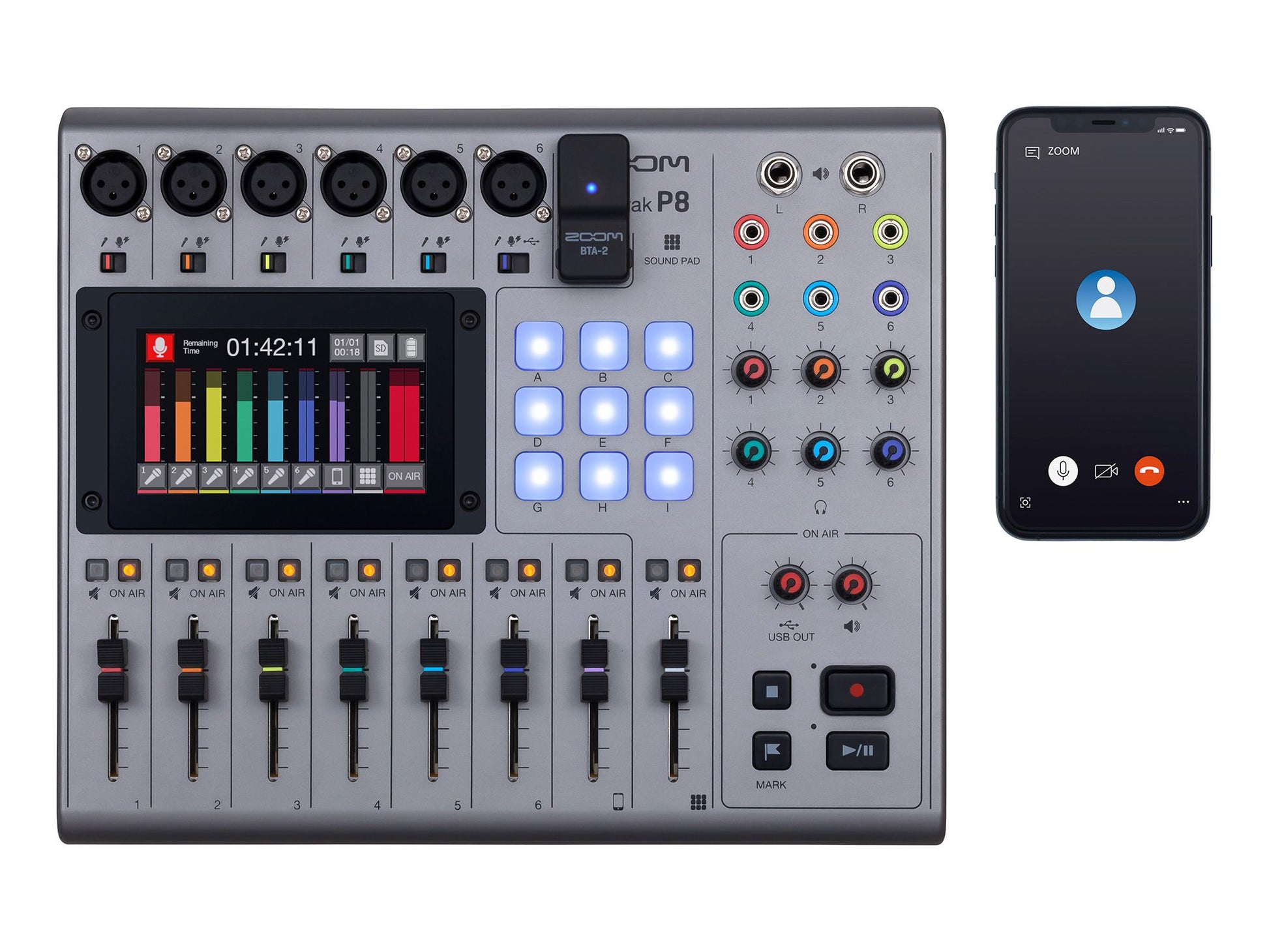

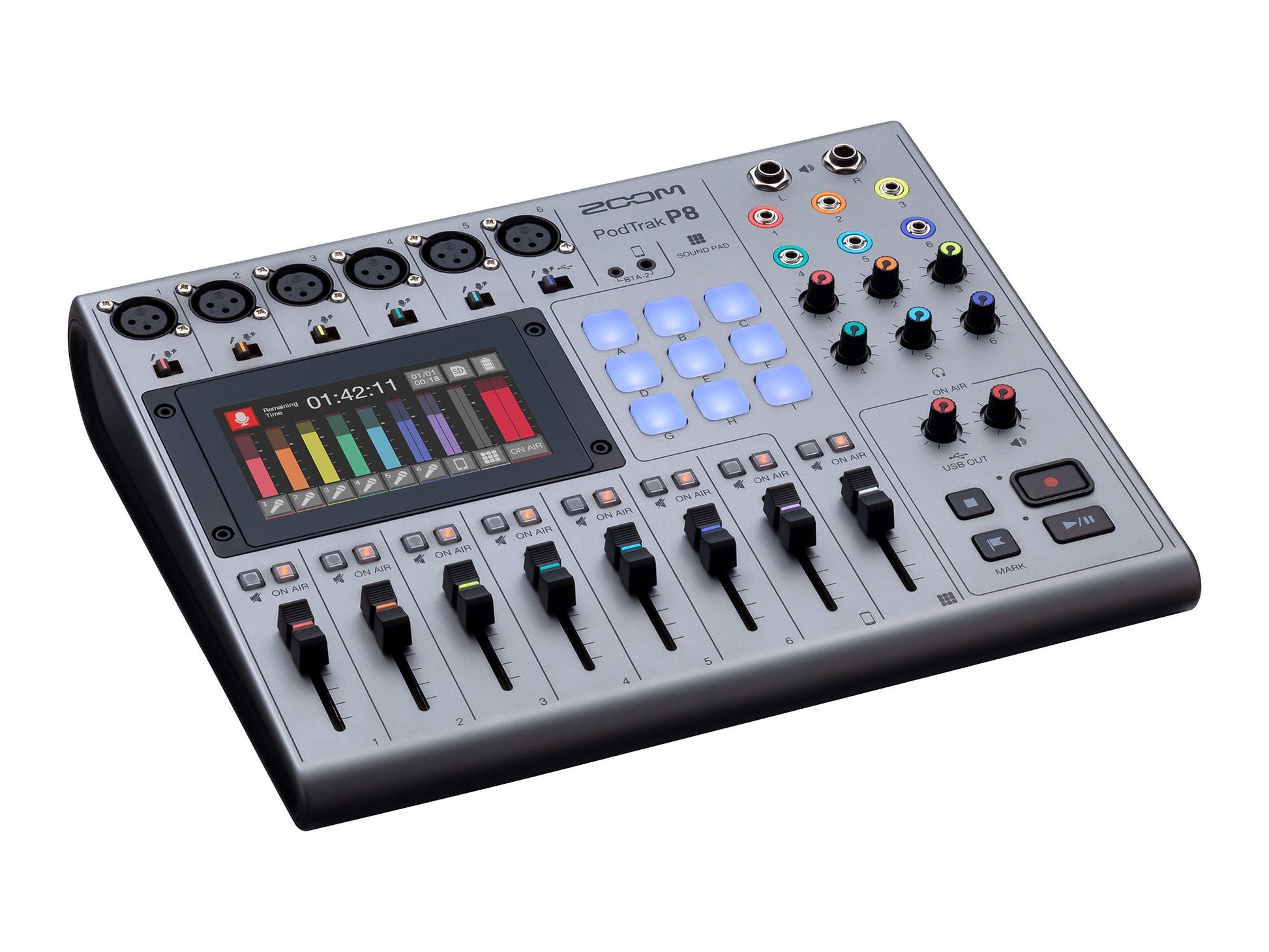

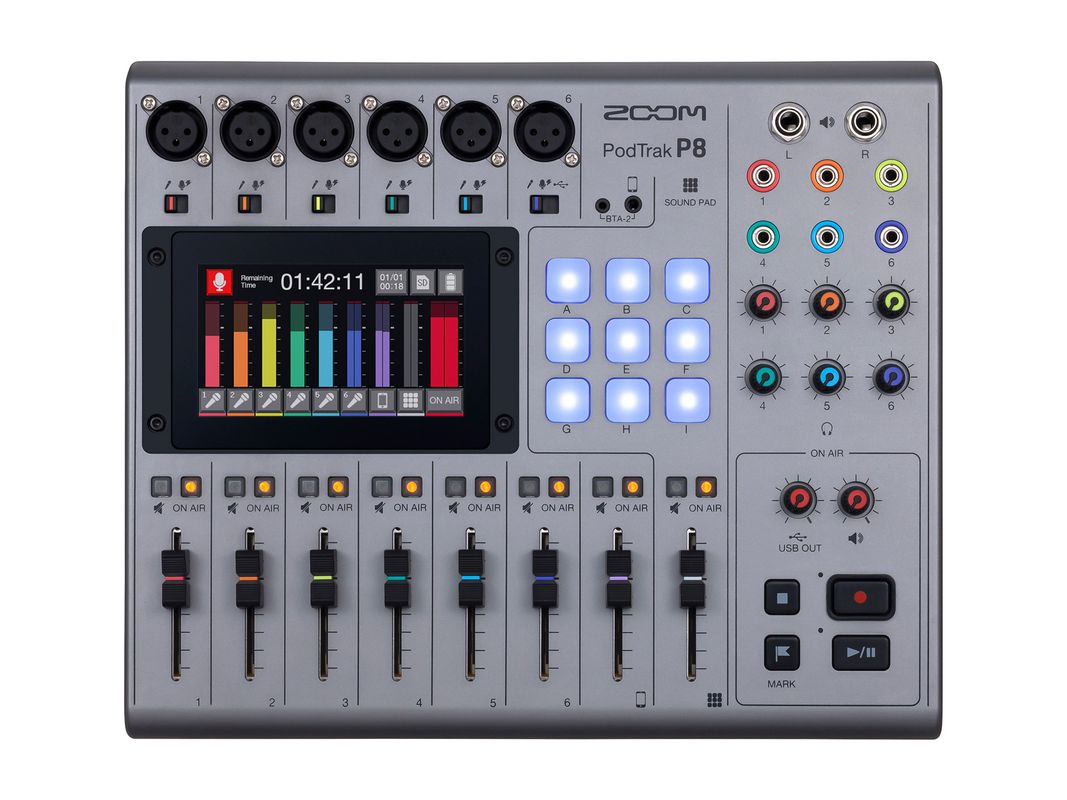

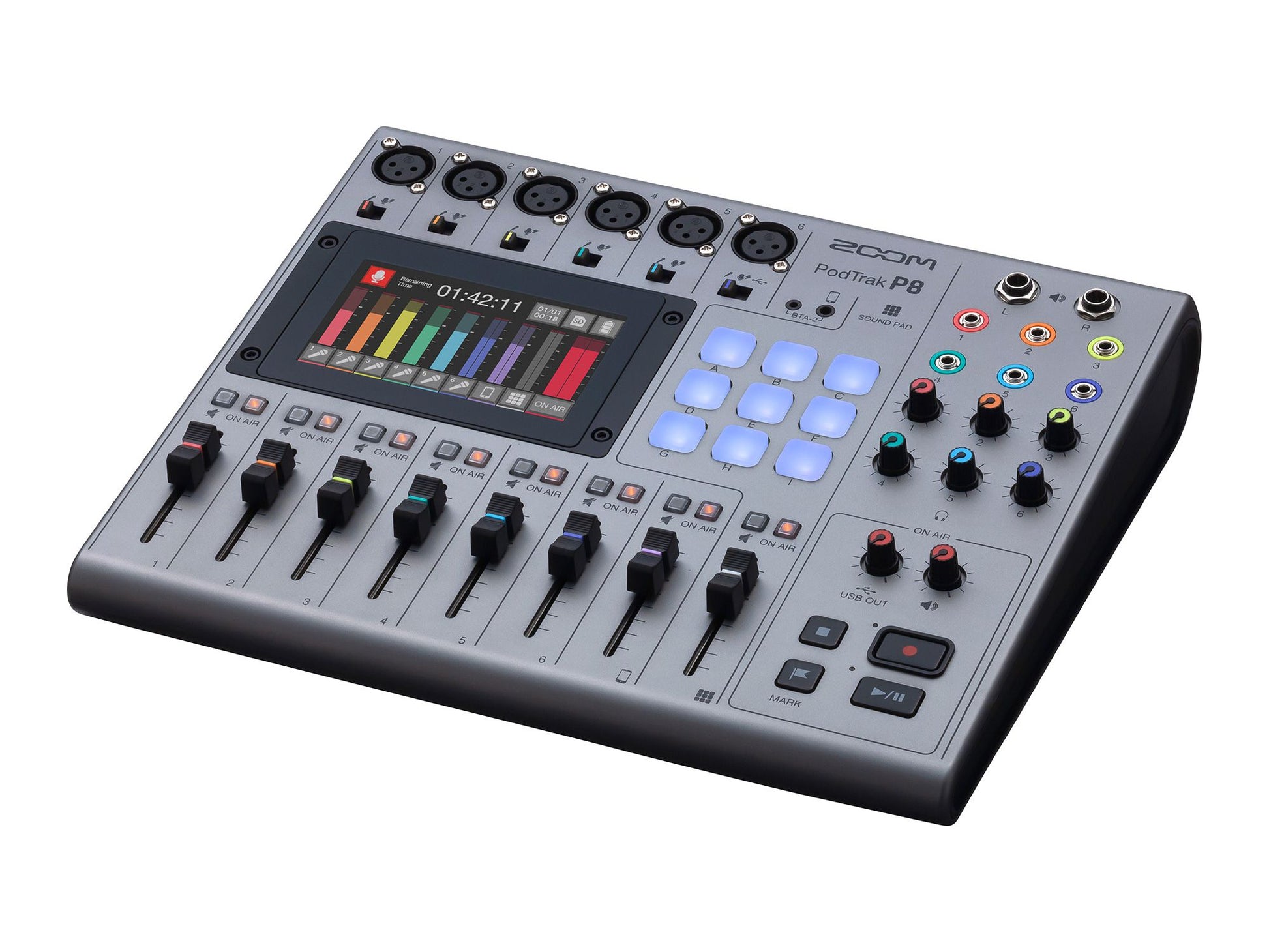

Zoom Podtrack P8 Podcast Recorder

Rp 7.720.000,00
Rp 9.650.000,00 Rp 7.720.000,00
-Rp 1.930.000,00
Tax included.
Availability: Low stock: 1 left
SKU: ZOM5416500215
Tags:
Collections:
Rp 7.720.000,00
Rp 9.650.000,00 Rp 7.720.000,00

FEATURES

  • 4.3" Color LCD touchscreen display. Select from English, French, German, Italian, Spanish and Japanese
  • Record up to 13 tracks simultaneously
  • Six mic inputs with XLR connectors and optional phantom power
  • Individual volume sliders, mute buttons and on air indicators for each channel
  • Dedicated channel for recording remote interviews
  • Mix-Minus function automatically prevents echo and feedback from callers phone
  • Nine assignable Sound Pads with four banks
  • 13 pre-loaded sounds including applause, laugh track and more
  • Six headphone outputs with individual volume controls let everyone hear clearly
  • Onboard editing
  • 2-input, 2-output USB audio interface
  • Class-compliant mode for iOS compatibility

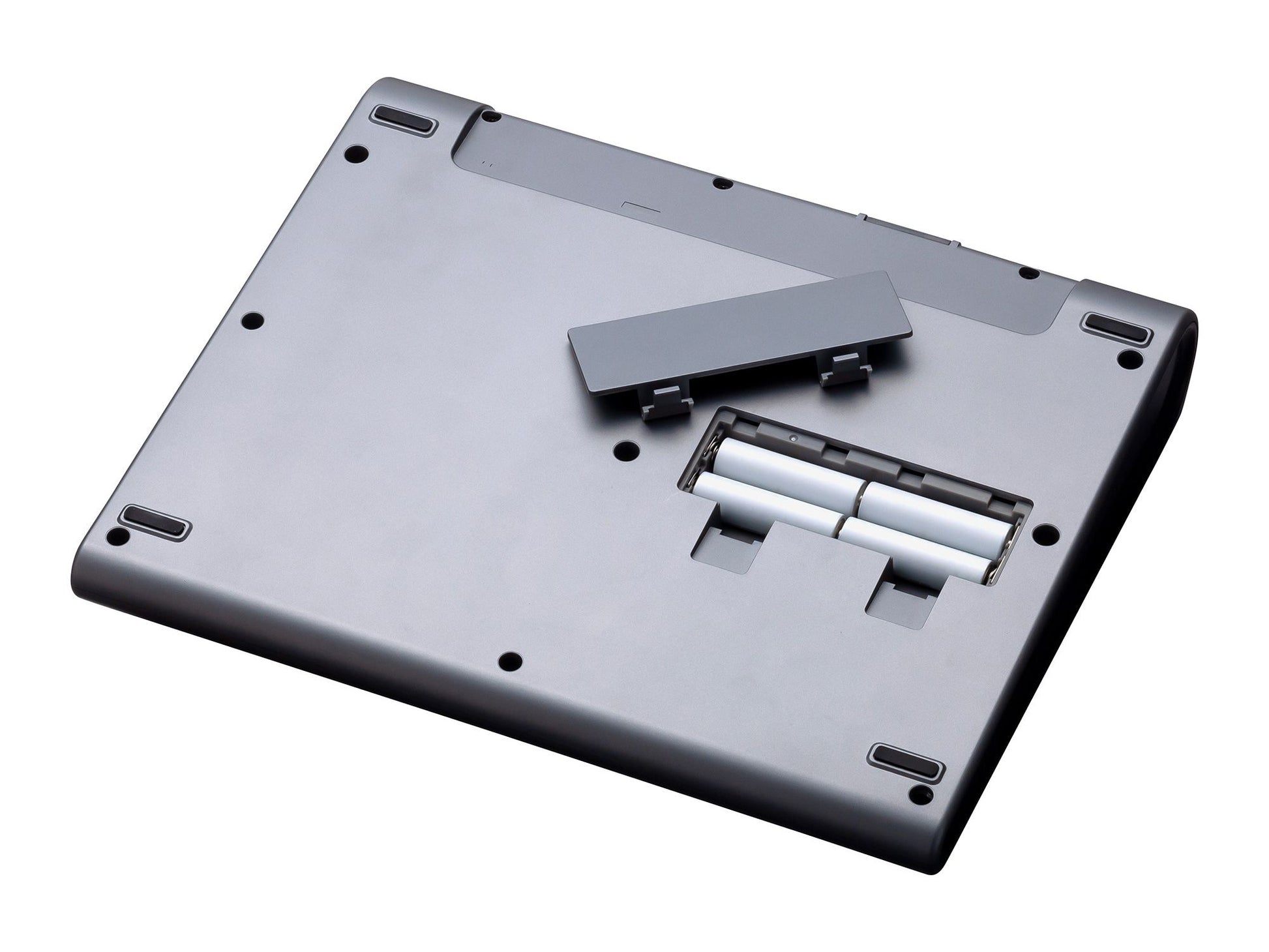

  • Battery power provides up to two hours of use with four AA batteries
  • Up to 1.5 hours of use with four AA batteries or use the included AD-14 AC power adapter
  • Records directly to SD, SDHC and SDXC cards up to 512GB
  • 16-bit /44.1kHz audio in WAV format

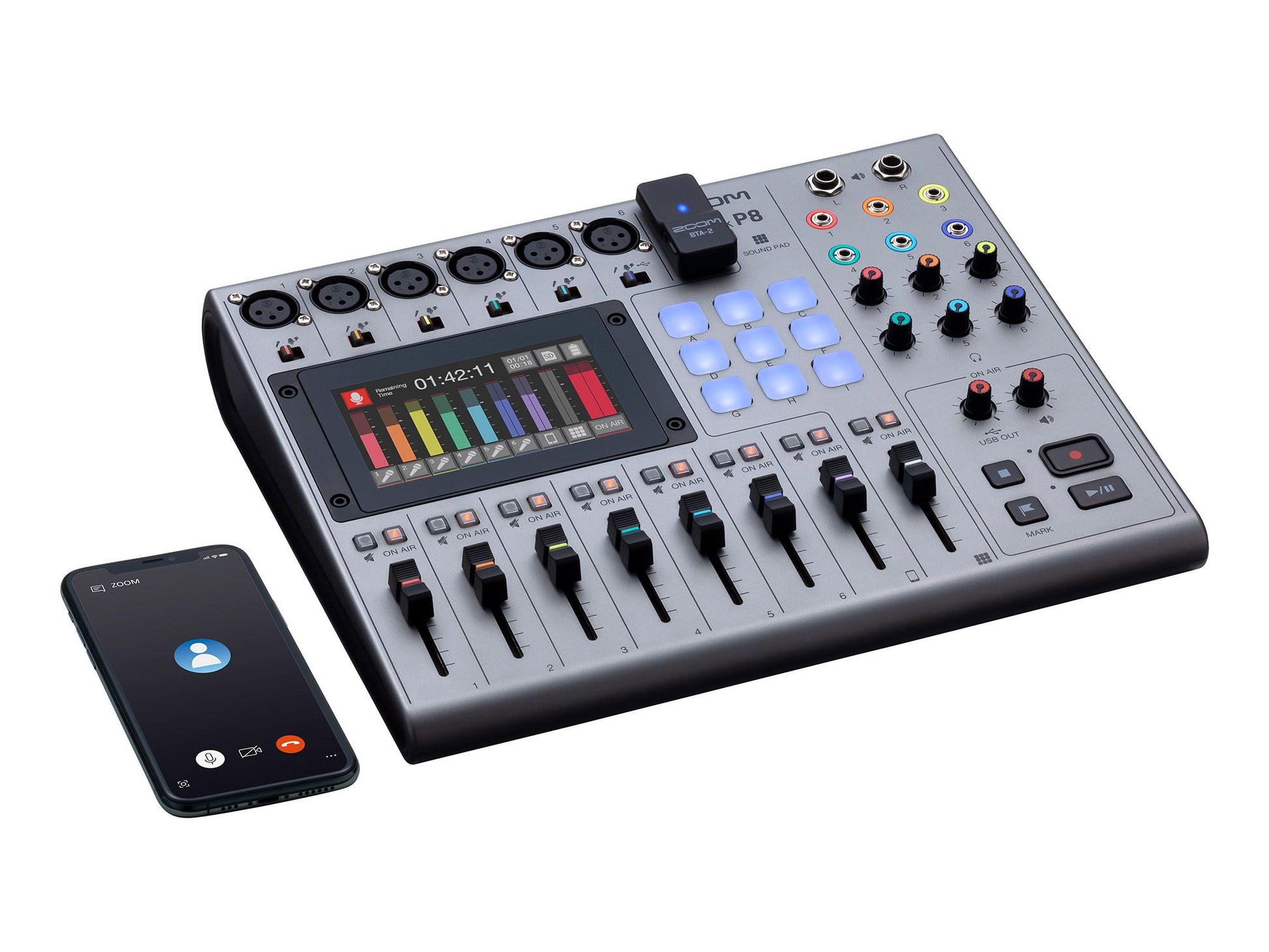

  • Optional BTA-2 Bluetooth Adapter enables wireless call recording

SPECS

INPUTS & OUTPUTS

NUMBER OF INPUT CHANNELS: Mic inputs: 6 (mono) Smartphone input: 1 (stereo)
NUMBER OF OUTPUT CHANNELS: 2 (6 headphones and L/R speaker outputs)

CONNECTORS

MIC:

TYPE XLR jacks (2: HOT)
INPUT GAIN 0 70 dB
INPUT IMPEDANCE XLR 3 k
MAXIMUM INPUT LEVEL 5 dBu (@0dBFS)
PHANTOM POWER 48 V

SMARTPHONE CONNECTION JACK:

TYPE TRRS mini jack (4 contacts, TIP: L, RING 1: R, RING 2: GND, SLEEVE: MIC)
INPUT IMPEDANCE 3 k
MAXIMUM INPUT LEVEL 2.5 dBu

USB:

USB TYPE-C (AUDIO INTERFACE AND MASS STORAGE FUNCTIONS).
USE A USB CABLE THAT SUPPORTS DATA TRANSFER. USB BUS POWER IS SUPPORTED.

HEADPHONES:

TYPE 3.5mm stereo mini
MAXIMUM OUTPUT LEVEL 20 mW 20 mW @32
OUTPUT IMPEDANCE 27

SPEAKER OUTPUT:

TYPE TRS jacks (balanced)
MAXIMUM OUTPUT LEVEL 5.5 dBu
OUTPUT IMPEDANCE 320

AC ADAPTER

POWER SUPPLY CONNECTOR FOR AD-14
FORMAT WAV 44.1kHz, 16-bit, mono/stereo
RECORDING MEDIA 4 32 GB cards compatible with the SDHC specification (class 10 or higher)

64 512 GB cards compatible with the SDXC specification (class 10 or higher)
AUDIO INTERFACE 44.1 kHz 16-bit 6 in / 2 out
FREQUENCY RESPONSE -1.0 dB: 20 Hz 20 kHz @44.1 kHz
EQUIVALENT INPUT NOISE EIN -124 dBu (IHF-A) @ 70 dB, 150 input
DISPLAY 4.3" (480 272) full-color touchscreen LCD
POWER SUPPLY 4 AA batteries (alkaline, lithium, or rechargeable NiMH) AC adapter (ZOOM AD-14): DC 5 V/1 A (supports USB bus power)
ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES Recording 44.1kHz/16-bit/4ch audio to SD card (when 48 V is OFF and headphone impedance is 32 )

Alkaline batteries: About 1.5 hours

NiMH batteries (1900 mAh): about 3 hours

Lithium batteries: about 5 hours

*The above values are approximate
POWER CONSUMPTION 5 W
EXTERNAL DIMENSIONS 295 mm (W) 248 mm (D) 61 mm (H)
WEIGHT (UNIT ONLY) 1.43 kg
