  3. Zoom V3 Vocal Processor
By Simfoni Musik

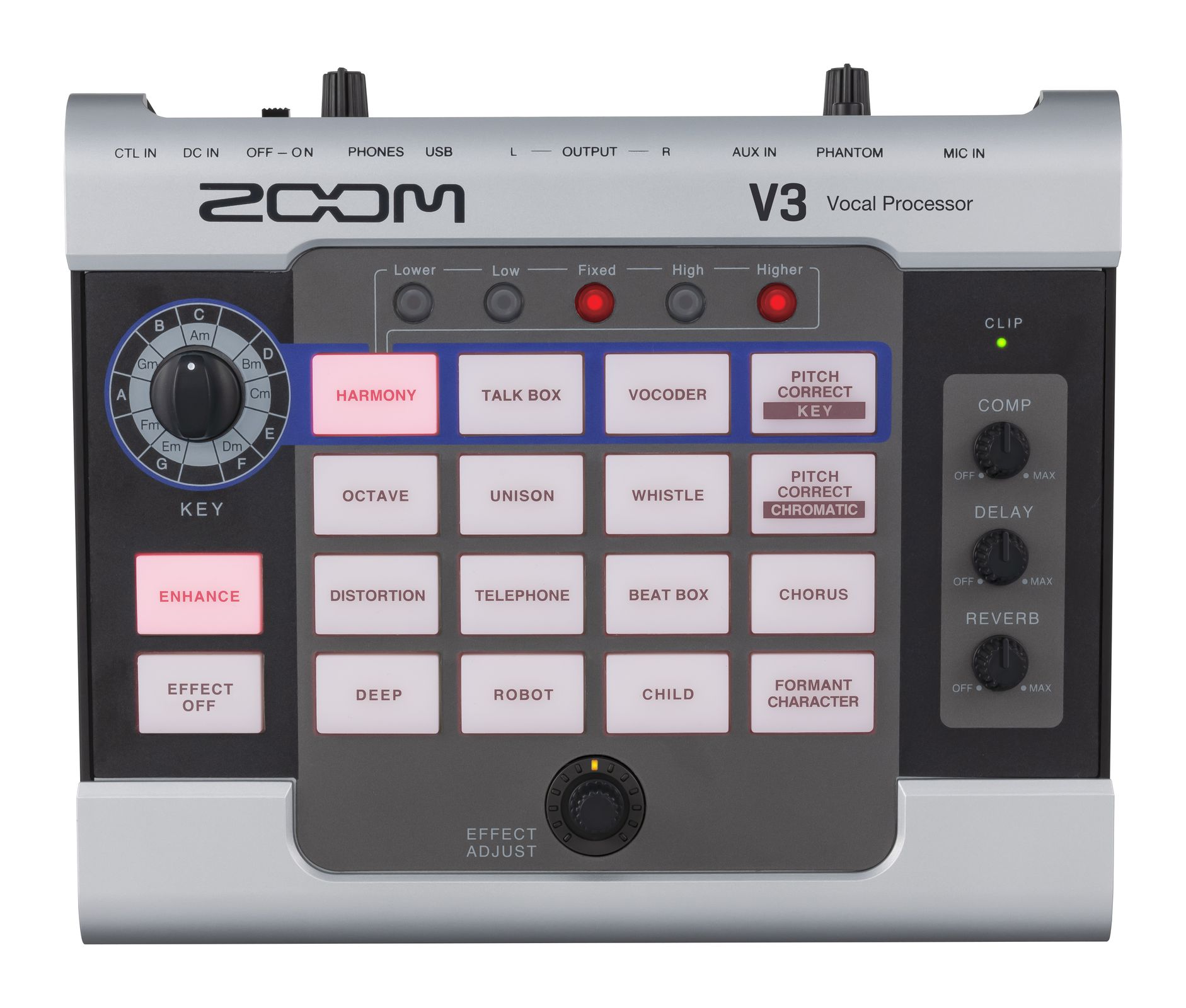

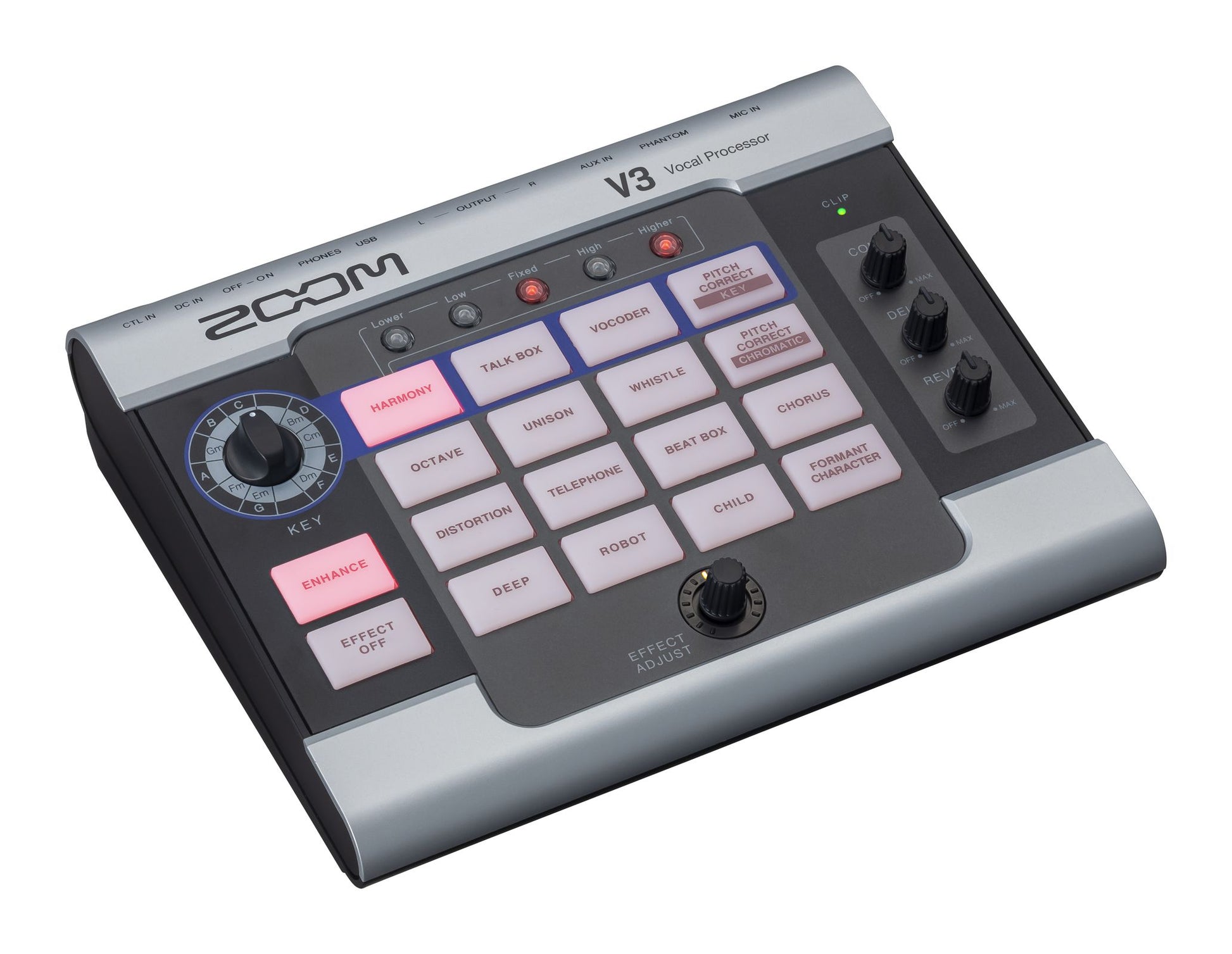

Zoom V3 Vocal Processor

Rp 3.160.000,00
Rp 3.950.000,00 Rp 3.160.000,00
-Rp 790.000,00
Tax included.
Availability: Low stock: 1 left
SKU: ZOM5419300203
Rp 3.160.000,00
Rp 3.950.000,00 Rp 3.160.000,00

V3 Features

  • V3 offers 16 creative voice effects plus compression, reverb, delay and enhance
  • Add up to two voices to create 3-part harmonies across a full octave
  • Independent compression, reverb and delay controls
  • Built-in Enhancer for increased sound clarity
  • 48V phantom power for condenser microphones
  • USB 2.0 audio interface capable of recording up to 16/24/32-bit, 44.1 kHz
  • Line outputs for connecting to PA systems or mixing consoles
  • Headphone output with dedicated volume control
  • Auxiliary input
  • Operates for 3.5 hours on 4 AA batteries or with Zoom AD-16 AC adapte

Specs

Effects

Effects: 16 types
Concurrent effects: 5
Sampling frequency: 44.1 kHz
A/D conversion: 24-bit 128× oversampling
D/A conversion: 24-bit 128× oversampling
Signal processing: 32-bit
Frequency response: 20 Hz–20 kHz (+1 dB/−3 dB) (10 kΩ load)

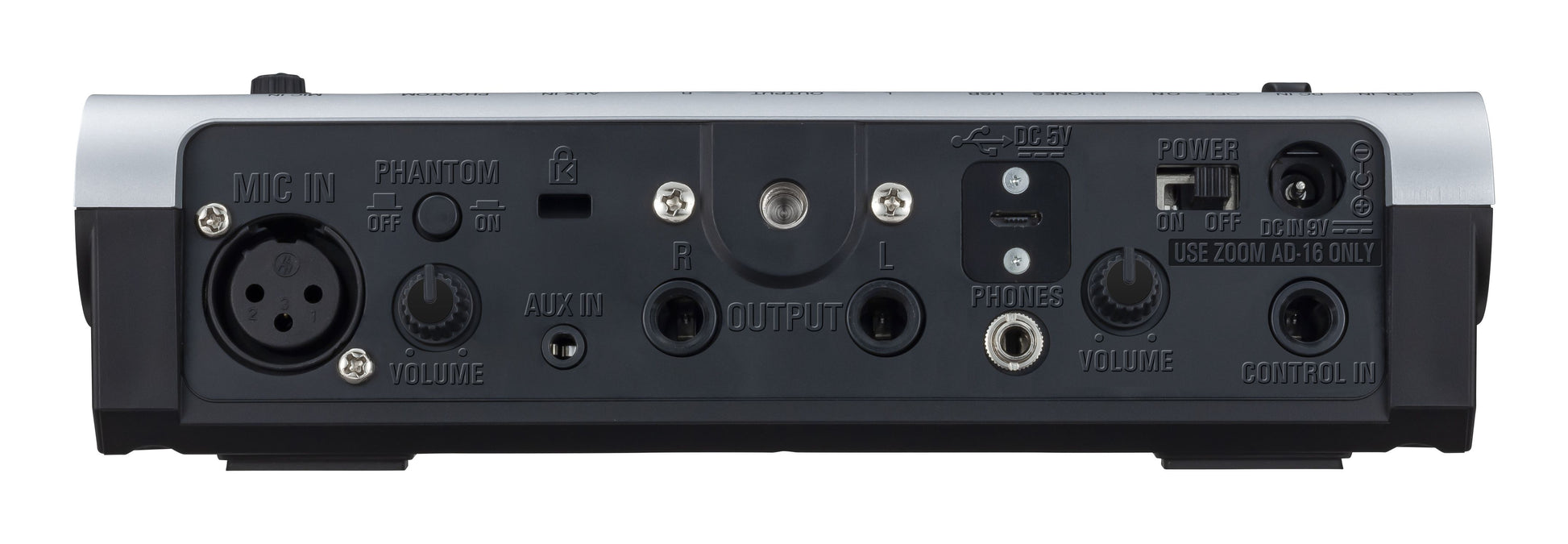

INPUTS

MIC IN: XLR jack
Input gain: +3 – +40 dB
Maximum input level: +4 dBu
Input impedance: 3 kΩ or higher (1 kHz)
Phantom power: +48 V
AUX IN: Stereo mini jack
Rated input level: −10 dBu
Input impedance (line): 22 kΩ

OUTPUTS

L/R OUT: Unbalanced TS jacks
Maximum output level: +6 dBu
Output impedance: 100 Ω
PHONES: Stereo mini jack
Maximum output level: 20 mW + 20 mW (into 32 Ω load)
Equivalent input noise (when phantom power off): –125 dBu or less (A-weighted, 150 Ω input, +40 dB input gain)
Noise floor (residual noise): –75 dBu
Control input: FS01/FP02M input

POWER

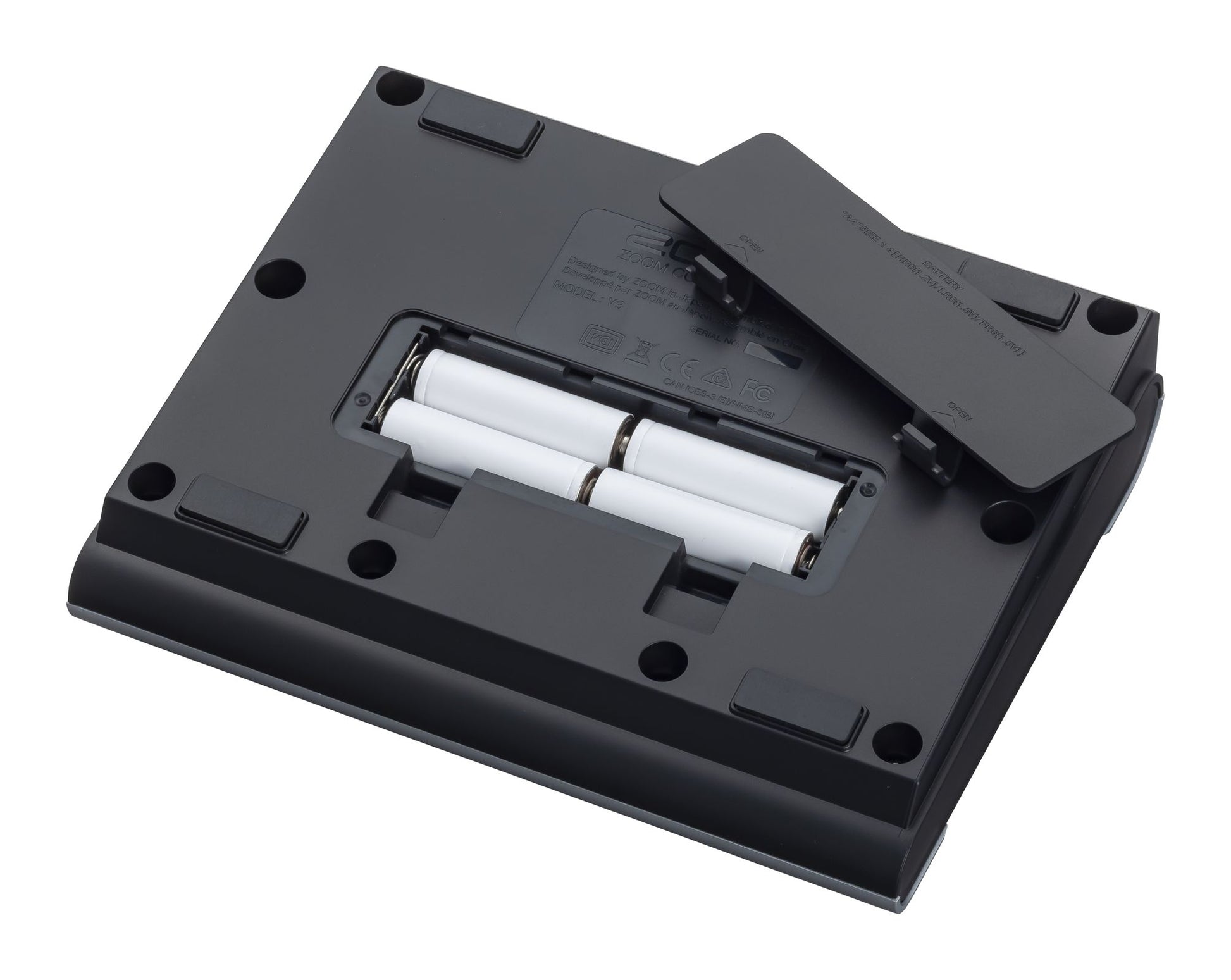

POWER: AC adapter (9 V DC 500 mA, center negative) (ZOOM AD-16) 4 AA batteries (about 3.5 hours continuous operation time when using alkaline batteries)
USB: Connector: Micro USB
Audio interface operation: 2-in/2-out USB2.0 Full Speed, 44.1 kHz, 16/24/32-bit
Power can also be supplied through the USB port.
When using a cable designed only for power, other USB functions cannot be used.

WEIGHTS AND DIMENSIONS

External dimensions: 150 mm (D) × 190 mm (W) × 50 mm (H)
Weight: 0.59 kg (excluding batteries)
